Type D - For Thetford C400 series models

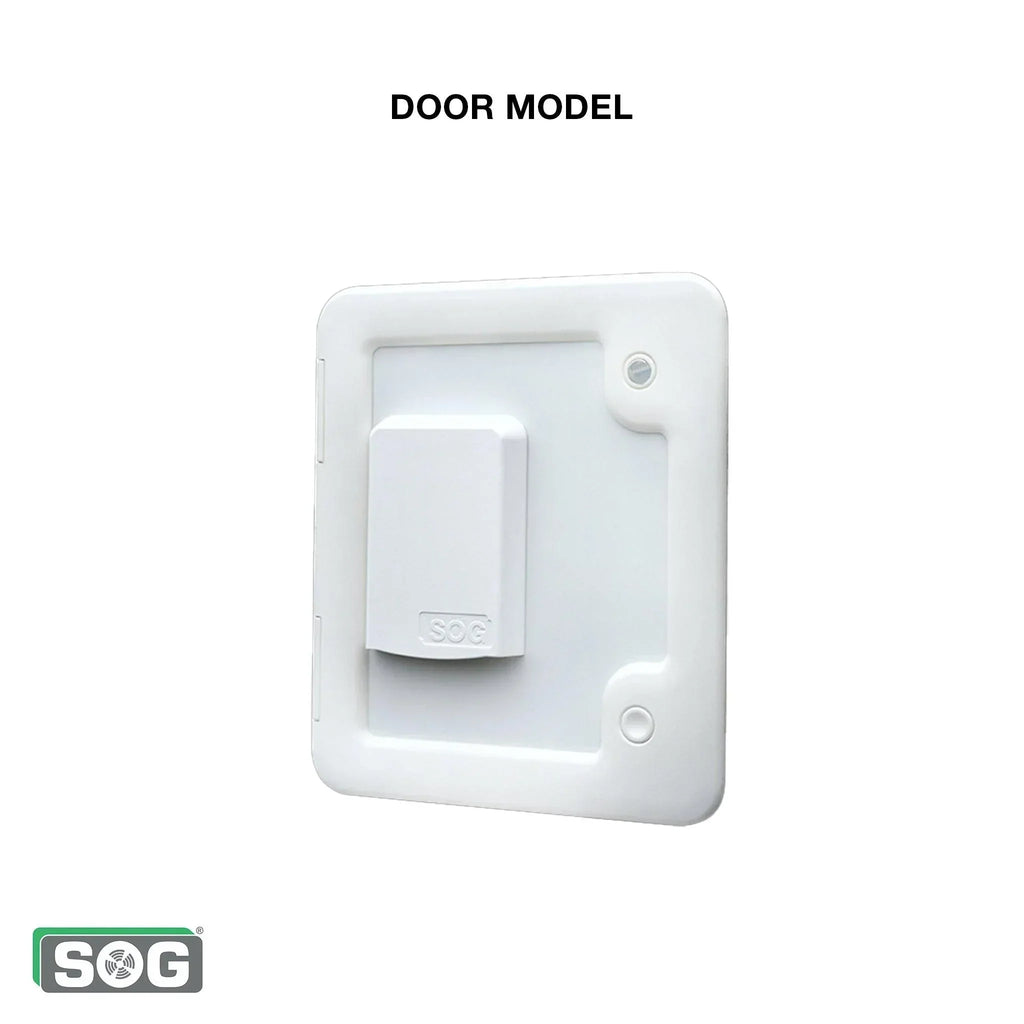

Odours are filtered to the outside through a carbon filter mat that is fitted to the exterior of the service hatch together with its filter housing. The connections and switch bracket for the SOG system are already fitted in the toilet in cooperation with Dometic.
The SOG Toilet Ventilation System is an ecological solution for motorhome and caravan toilets. It is 100% chemical free and 100% odourless.
This system is available for all popular 12V Thetford and Dometic cassette toilets, as well as for permanent black water tanks. Choose from standard side, roof or floor venting models, all designed to match your existing cassette toilet.
Made with the traditional German engineering and know-how, this solution to a smelly problem will be an investment in quality of lifestyle.
Features
- Additives are no longer necessary and optimal decomposition is guaranteed by the increased flow of oxygen
- The fast and powerful ventilator immediately removes odours by suction
- No more smells in the vehicle
- No further problems with the pressure of gases caused by decomposition
- The power consumption is very low at 0.43 watts.
Specifications

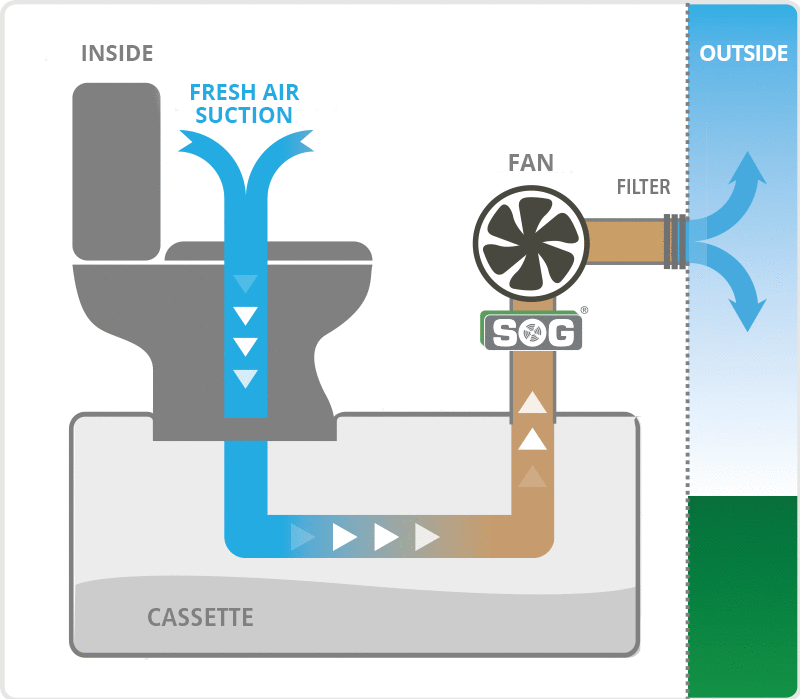

- The ventilator is switched on as soon as the blade valve starts to open and is switched off again when the blade valve is closed.
- No smells can leave the waste holding tank as soon as the ventilator is switched on.
- There is a suction effect in the waste holding tank which draws in fresh air through the blade valve. This downflow acts as a seal and prevents the gases and smells from rising.
- The fresh air that is drawn in removes the new odours in the toilet bowl when it is being used.
- The decomposition process for sewerage and toilet paper is accelerated by the increased flow of oxygen so that no additional chemicals are required.
- No special toilet paper is required, in fact ordinary toilet paper is recommended for use with this system.
The contents of the SOG® assembly kit:
- The fan – the heart of the ventilation system
- Adapter parts
- A cable set with a switch for the fan power supply
- All small parts required for installation
- Highly sophisticated installation instructions
- Filter casing
- A charcoal filter mat
