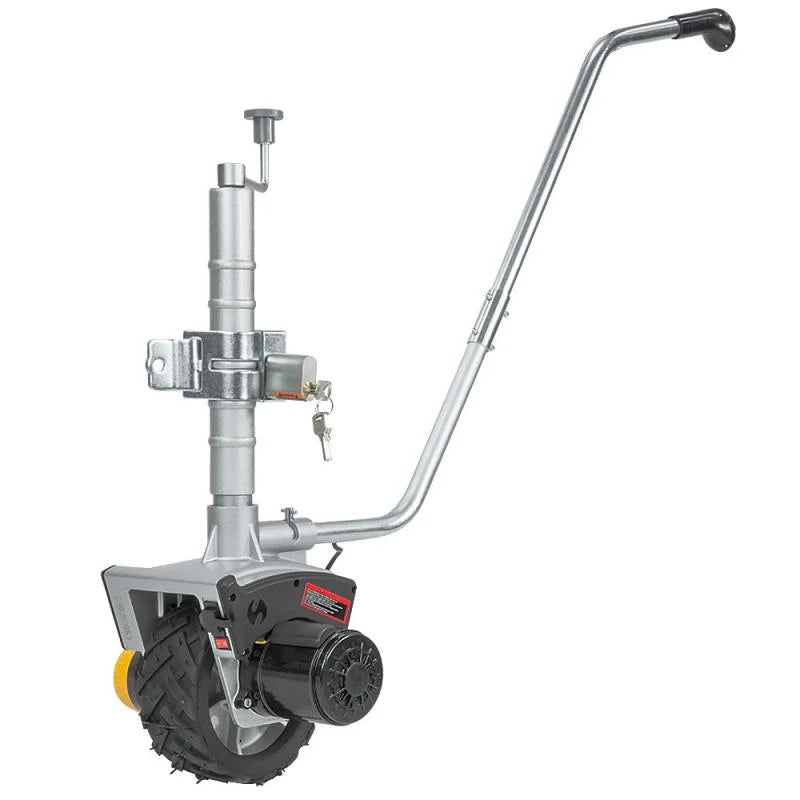

The Mini Mover Gen3 electric jockey wheel black is the perfect solution for effortlessly maneuvering trailers, campers, boats, and caravans.
The Gen3 introduces a redesigned mounting bracket and rectangular cuboid support jack for enhanced stability and durability. With a remarkable pulling capacity of 2722kg up an incline of 7 degrees, the Gen3 ensures efficient movement across various terrains. The handle can be rotated left or right, providing unparalleled control and ease of operation. This jockey wheel is also equipped with an extra-large 8-inch tire featuring a no-flat design and rubber tread for maximum traction on any surface.
Elevate your towing experience with the Mini Mover Gen3 to experience the effortless maneuvering of your recreational vehicles!
Features:
Redesigned mounting bracket
New rectangular cuboid support jack
Handle can be rotated left or right for easy manoeuvring

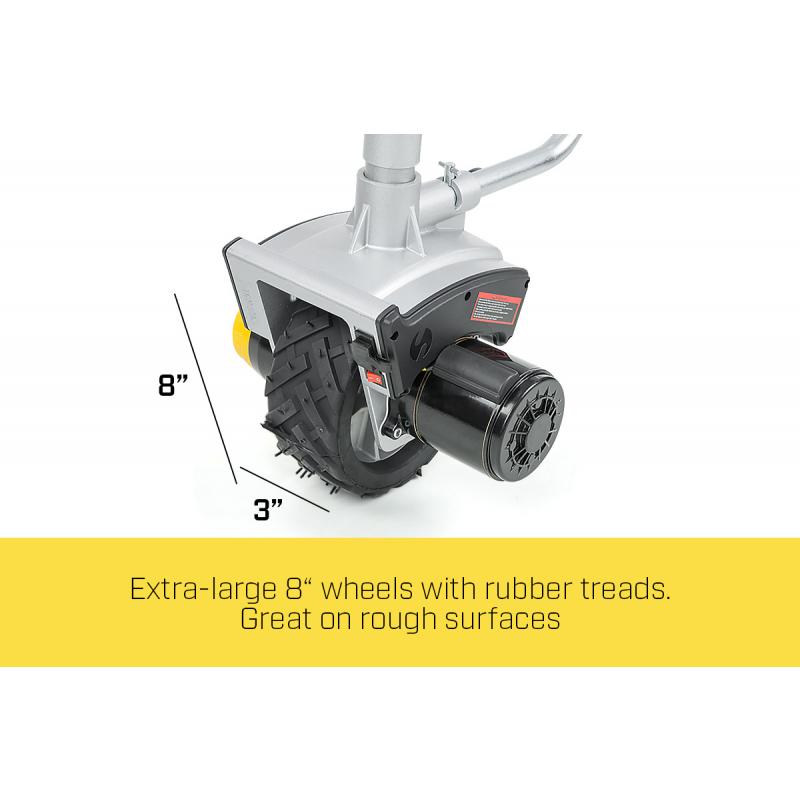

Extra-large 8-inch tire featuring a no-flat design and rubber tread
Power forward and power reverse functions
Innovative clutch allows for steering without power
Welded design seamlessly integrates the clamp
Simple bolt design is easy to install
Boasts a new no-drill mounting option
Specifications:
Motor Power: 12V DC 550W
Max Jack Load: 1110lb (498kg)

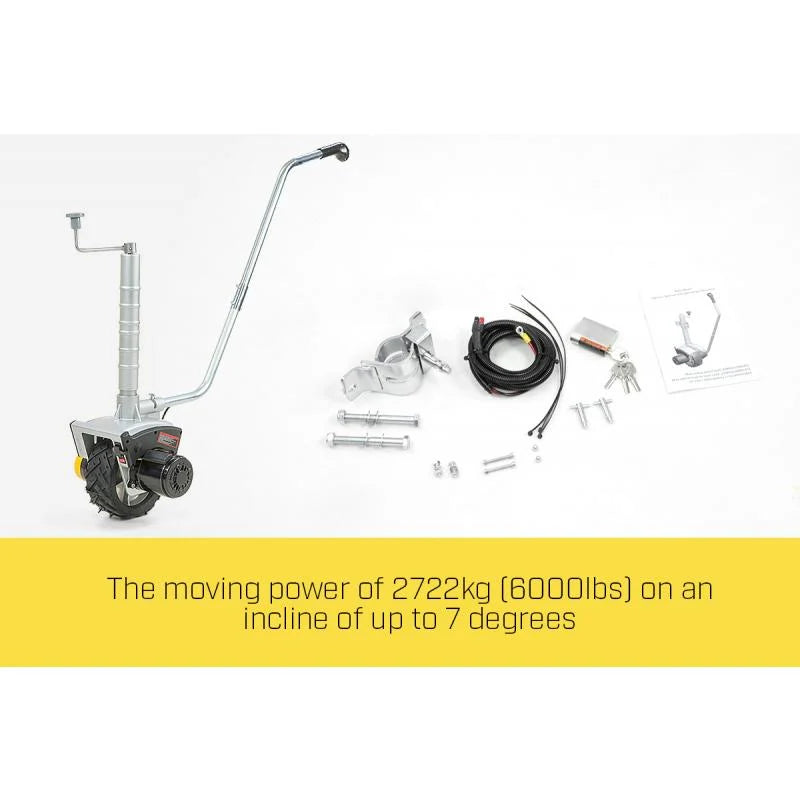

Max Pulling Load Capacity: 6000lb (2722kg)
Max Incline: Up to 7 Degrees
Moving Speed: 6 to 7 metres per minute
Height Adjustment: 18.5in (47cm) to 23.6in (60cm)
Net Weight: 18.6kg
Gross Weight: 21kg
Package Includes:
1 x Electric Motorised Jockey Wheel
1 x Instruction Manual
Please note: This unit will not suit double axle trailers due to the lack of weight on the jockey wheel for grip.
The supplier recommends having a minimum of 100kg load weight on the jockey wheel A frame depending on the model van and may need additional.
The jockey wheel requires 12v power from battery with 24Ah capacity or greater, a battery is not included.
