Fiamma Caravan A Frame 2 Bike Rack Carrier XL

A convenient & compact solution to transport up to two bicycles!

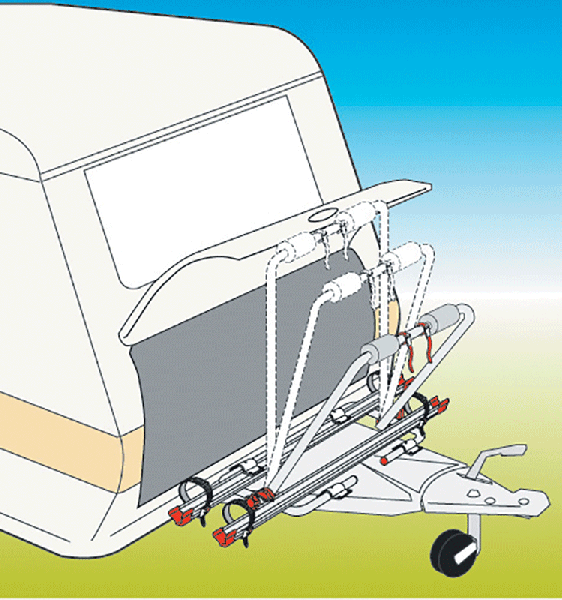

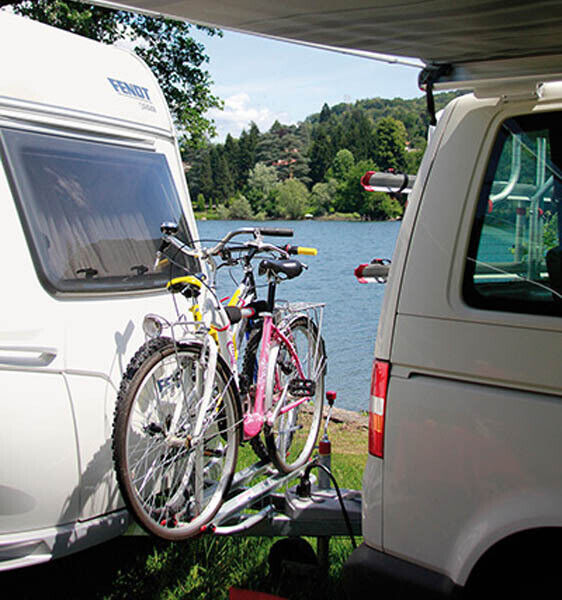

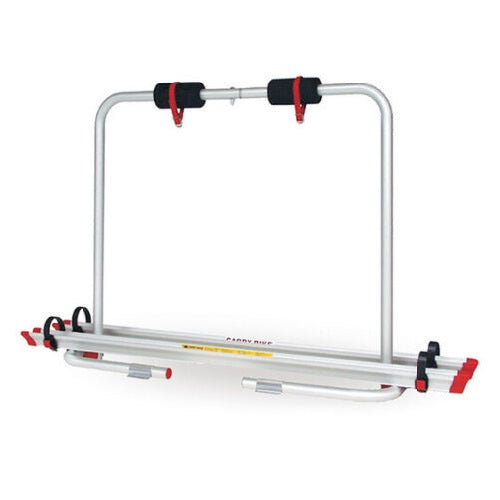

The Fiamma Carry Bike XL A fits all caravans that have a standard a-frame and pivots forward allowing access to the storage compartment. It supports up to two bikes at a total weight of 35kg. With a compact and lightweight frame, the bike rack is of sturdy build completed by an anodised finish.

Easily installed and requires no drilling, the rail support base has been re-inforced with a new aluminium blocking system to eliminate the need for bike blocks. It comes complete with installation brackets and all other hardware needed.

Specifications:

• Suits Caravans (including Hobby & Al-Ko) sits on the A-frame (up to 130mm deep) at the front of your caravan

• Includes: 2 x Red Straps, 2 x Rail Quick, Brackets

• Capacity Included: 2 bikes weighing a maximum total of 35kg

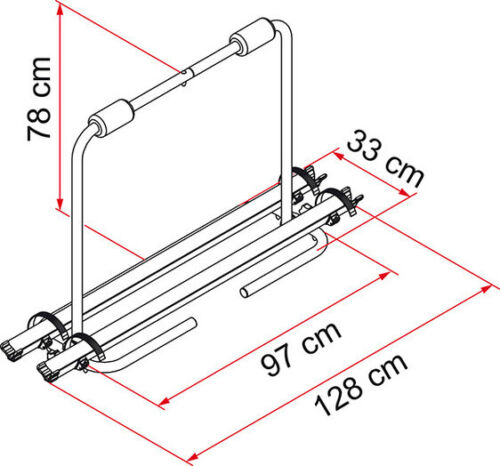

• Dimensions: 1280mm (W) x 380mm (D) x 1000mm (H)

• Weight: 5.3kg

• Note: Any caravan covers that cover your A-frame will need to be removed before fitting the Carry-Bike Caravan XL A to the frame.

• Code: 02093-01A

SEE USER MANUAL HERE
