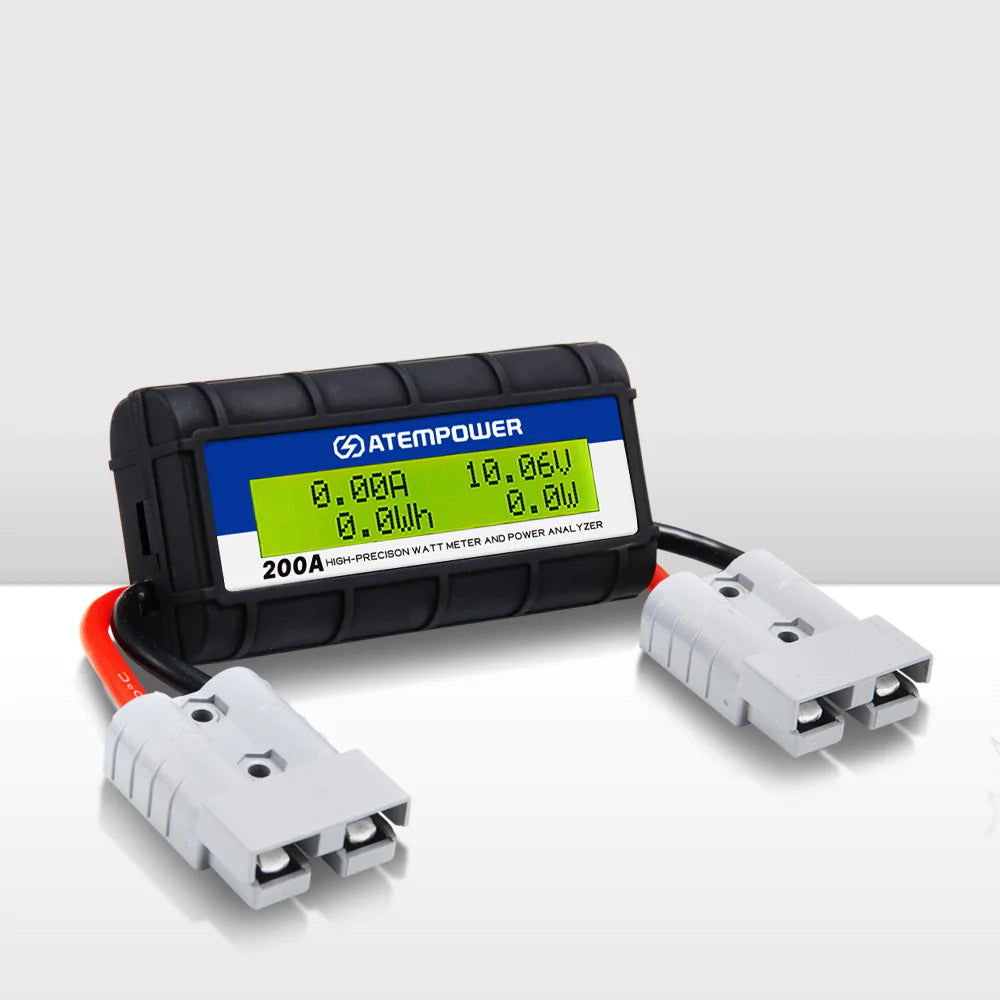

ATEM POWER 200A Digital Volt Watt Meter 12V

• Ideal for the 4x4 and camping enthusiast
• Prevents peak currents from damaging the battery, ESC, motors, wiring, and connectors
• Verifies sufficient operating voltage under load
• Individual cell balancing. Set cutoff voltages, check battery capacity health

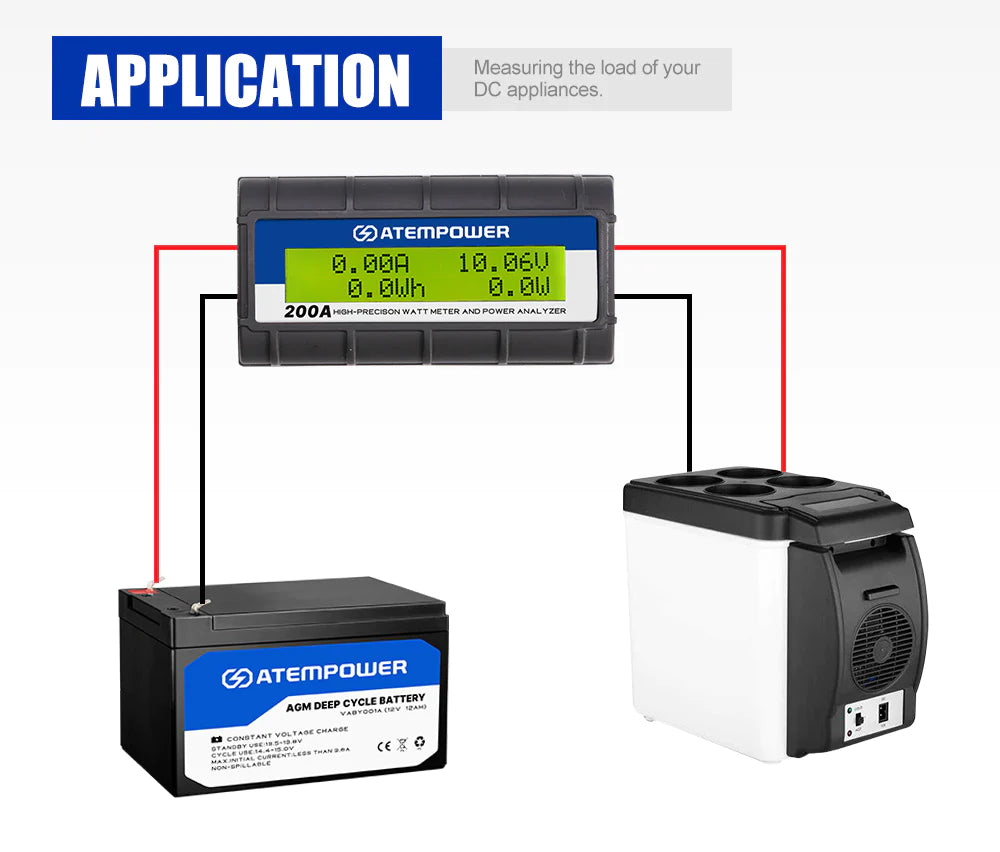

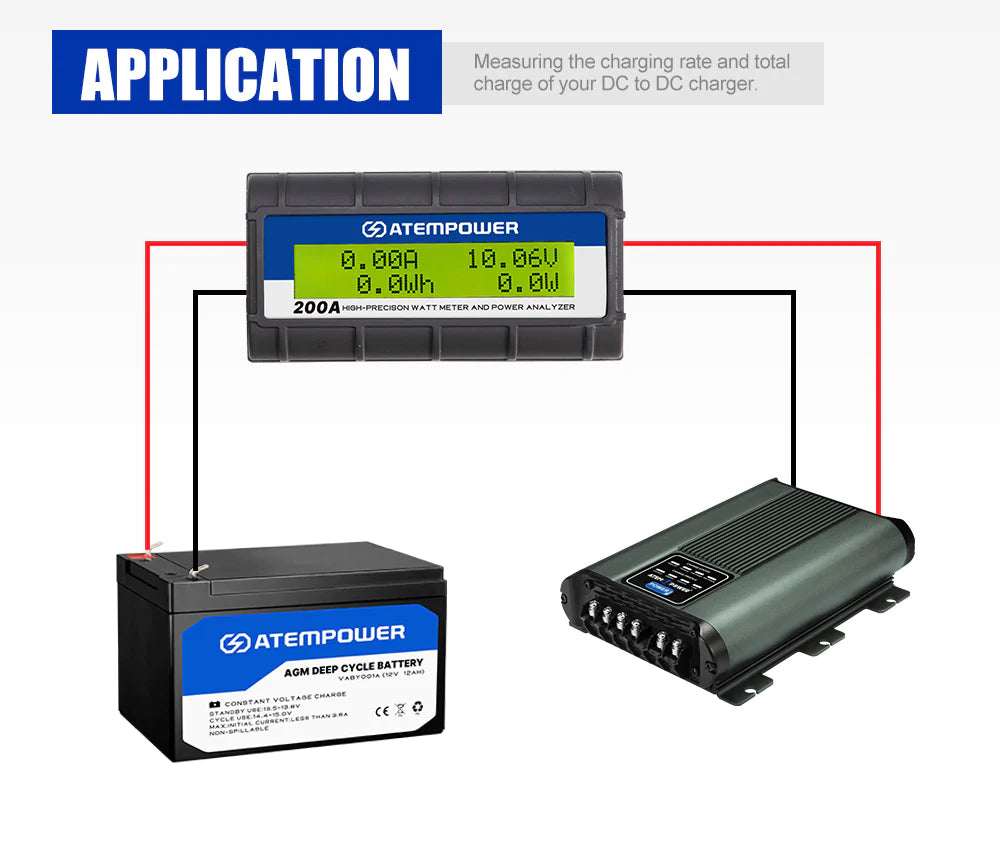

• Confirms proper battery charger operation (connect between your battery and charger)
• Detect receivers and actual operating current so as to make sure whether a UBEC is needed
• Provides 8 Electrical Readings: Current (A), Voltage (V), Watts (W), Amp-hours (Ah), Watt-hours (Wh), Peak Amps (Ap), Minimum Volts (Vm), Peak Watts (Wp).
• Digital LCD Screen: Easy to read LCD screen provides clear number readings. And Real-Time Reading: The Watt Meter will continuously provide real-time readings of the amps, volts, and watts after connection.
• High Precision: Measures 0-200 Amps, Resolution 0.01 Amps. Measures 0-60 volts, Resolution 0.01 volts. 0 - 6554W, resolution 0.1W. 0 - 65Ah, resolution 0.001Ah. 0 - 6554Wh, resolution 0.1Wh

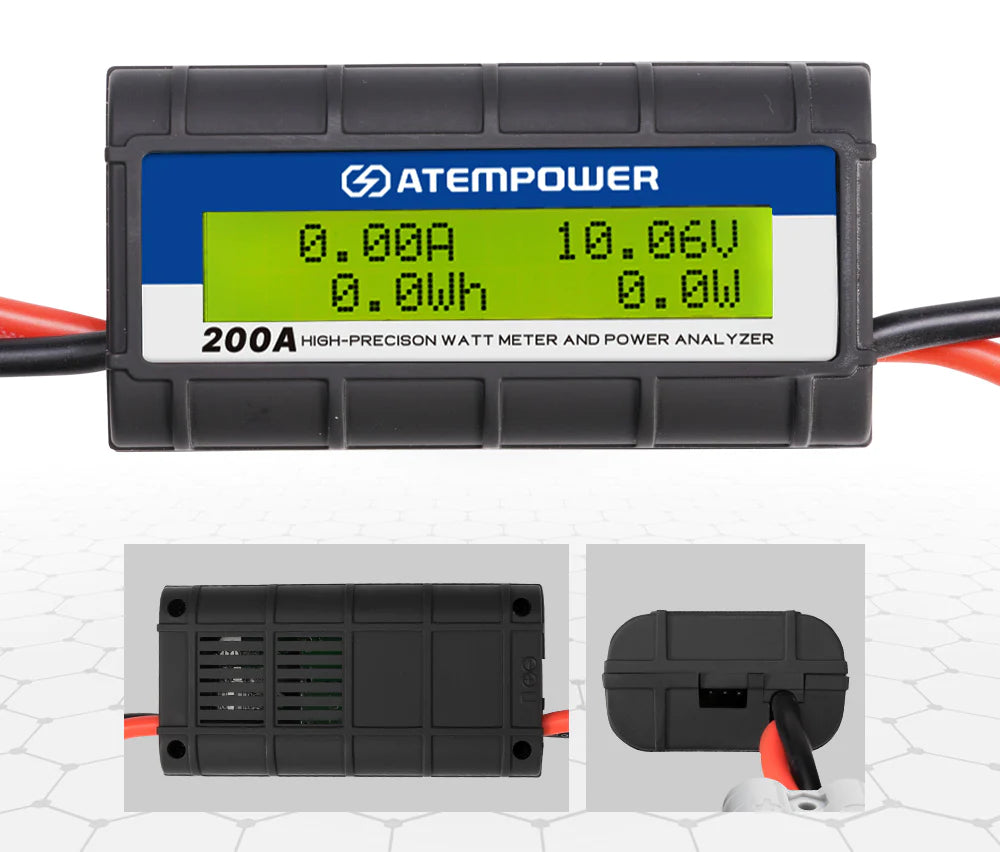

• Yellow backlit LCD display, 2x Anderson Plug included

Specifications

• Operation Voltage: 0-60V(0-9V with Auxiliary Power)
• Operation Current: 0-200A
• Auxiliary Battery Operating Voltage: DC 9-60V
• Auxiliary Battery Operating Current: 0.2-0.5A
• Operating Temperate: 0℃(32℉)-70℃(158℉)
• LCD Display Screen: 16 Character x 2 Row STN LCD
• Measurement Update Period: 0.4s
• Data Queue Sequence Time: 2s
• Wire Size: 12AWG

Package Includes
1 x LCD Watt Meter with Anderson Style Solar Plug
1 x User Manual
