Darche Eclipse 270 Awning Left + Wall Set BUNDLE

AWNING

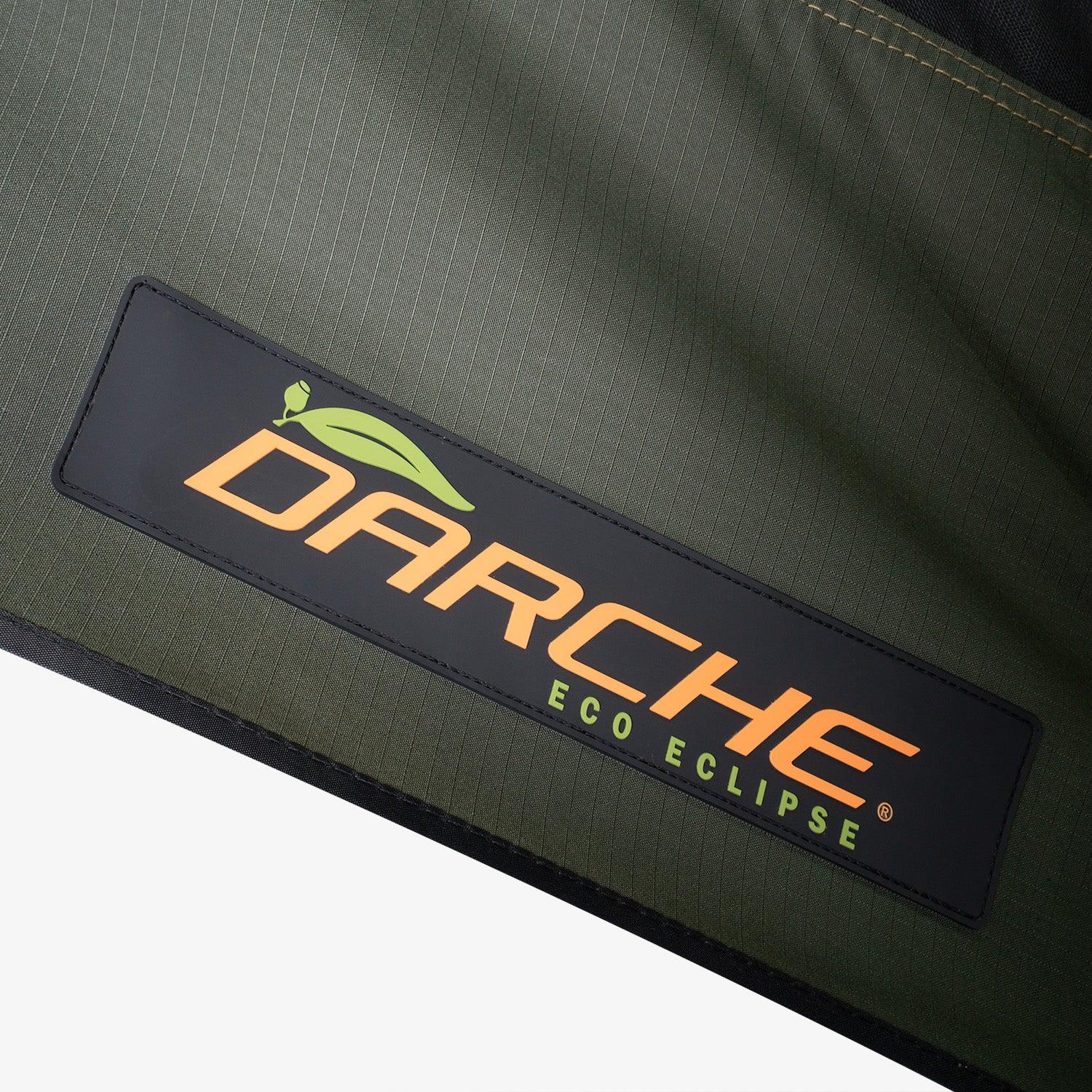

One of your favourite Darche products has become much greener with the introduction of the latest eco-friendly recycled materials in the Eco 270° Awning. The ecoWGAF™ material cleans up and delivers high performance in tear strength, abrasion resistance, colour fastness and water repellency.

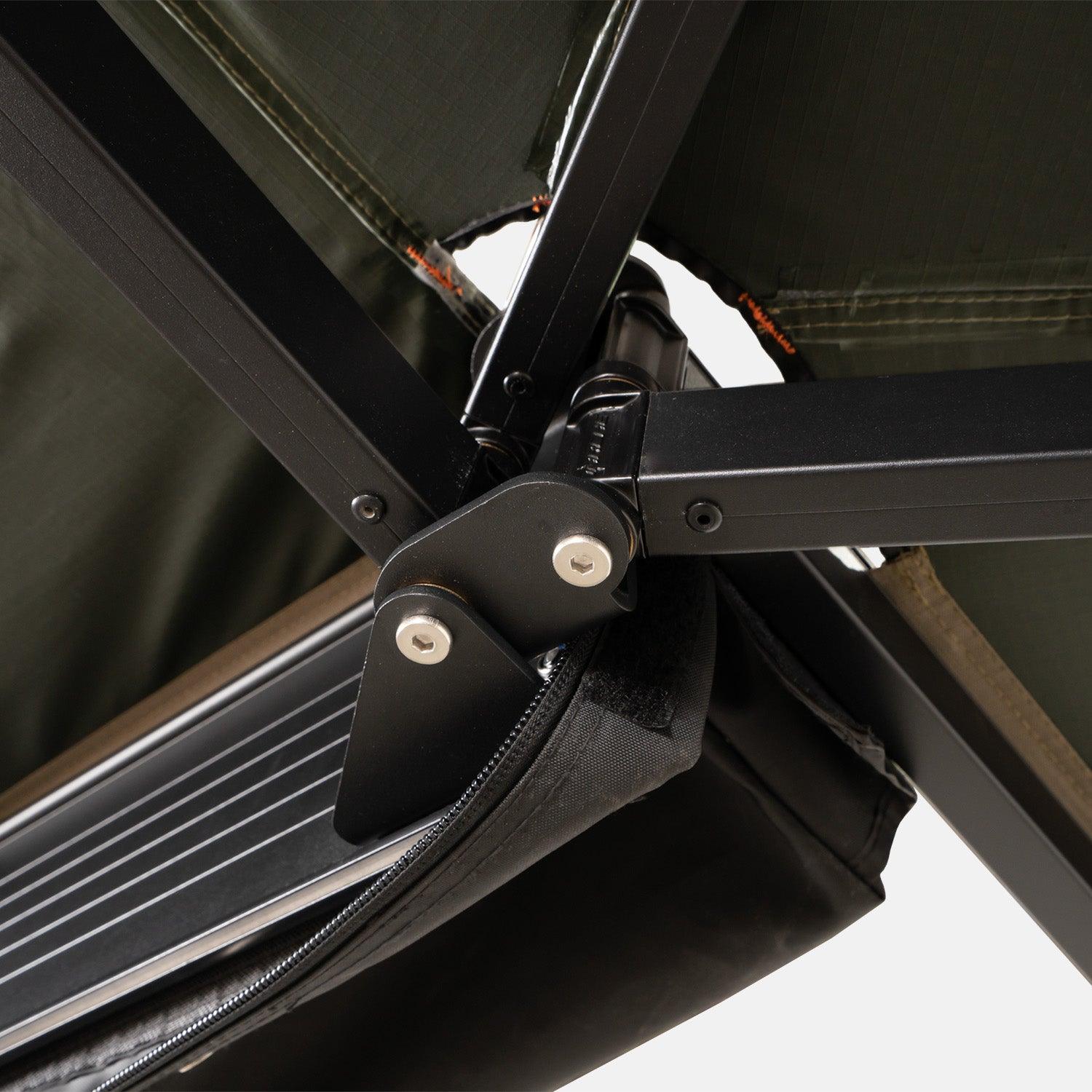

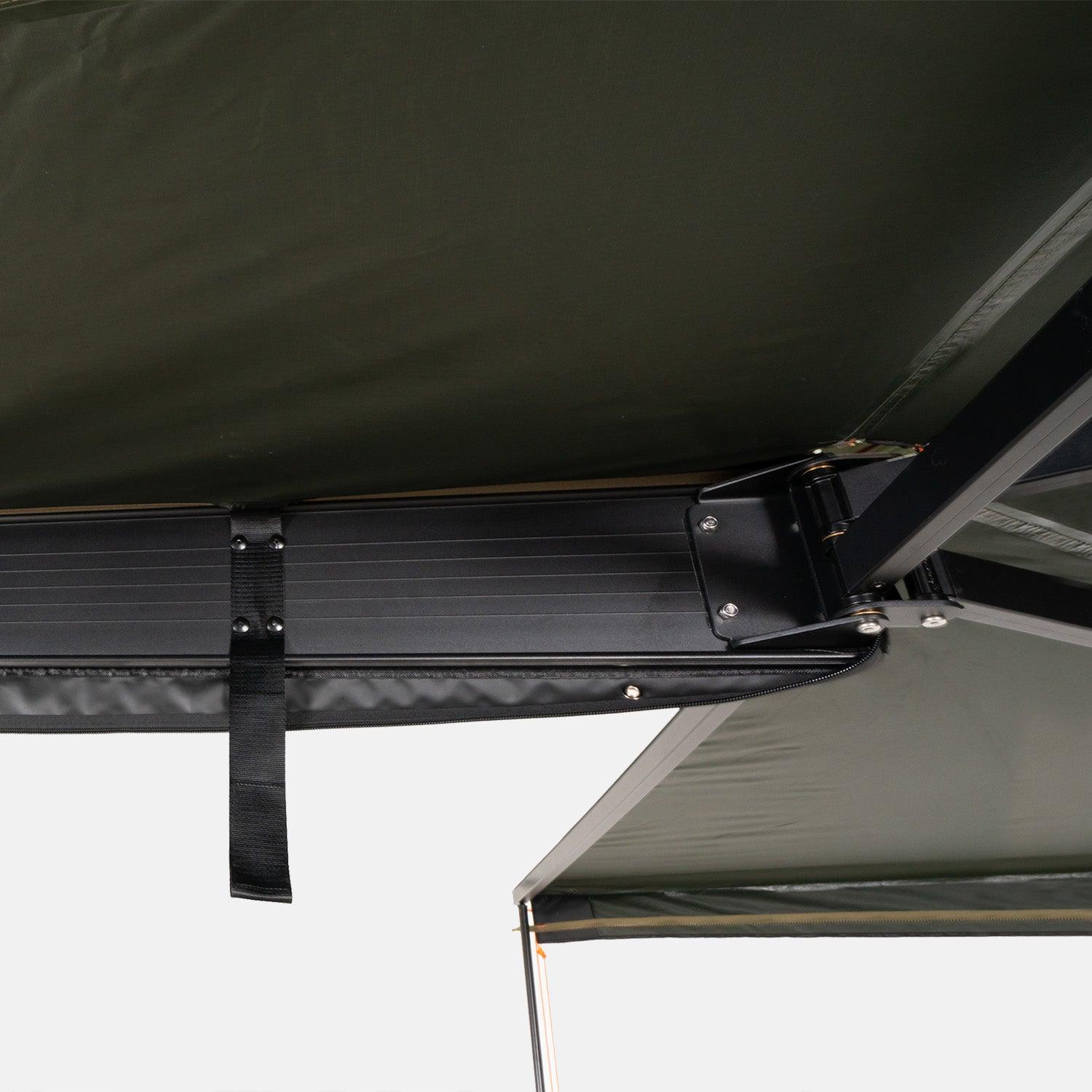

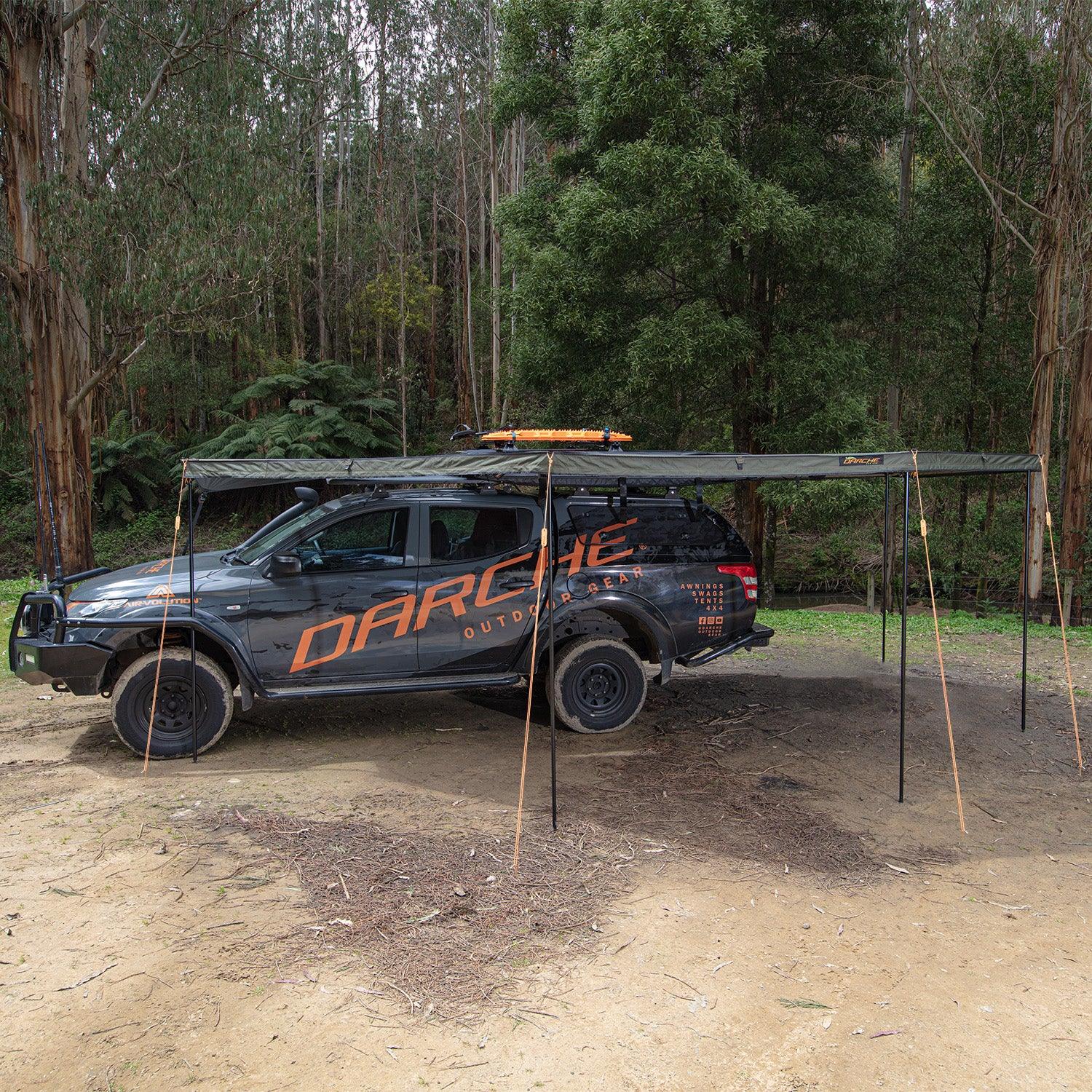

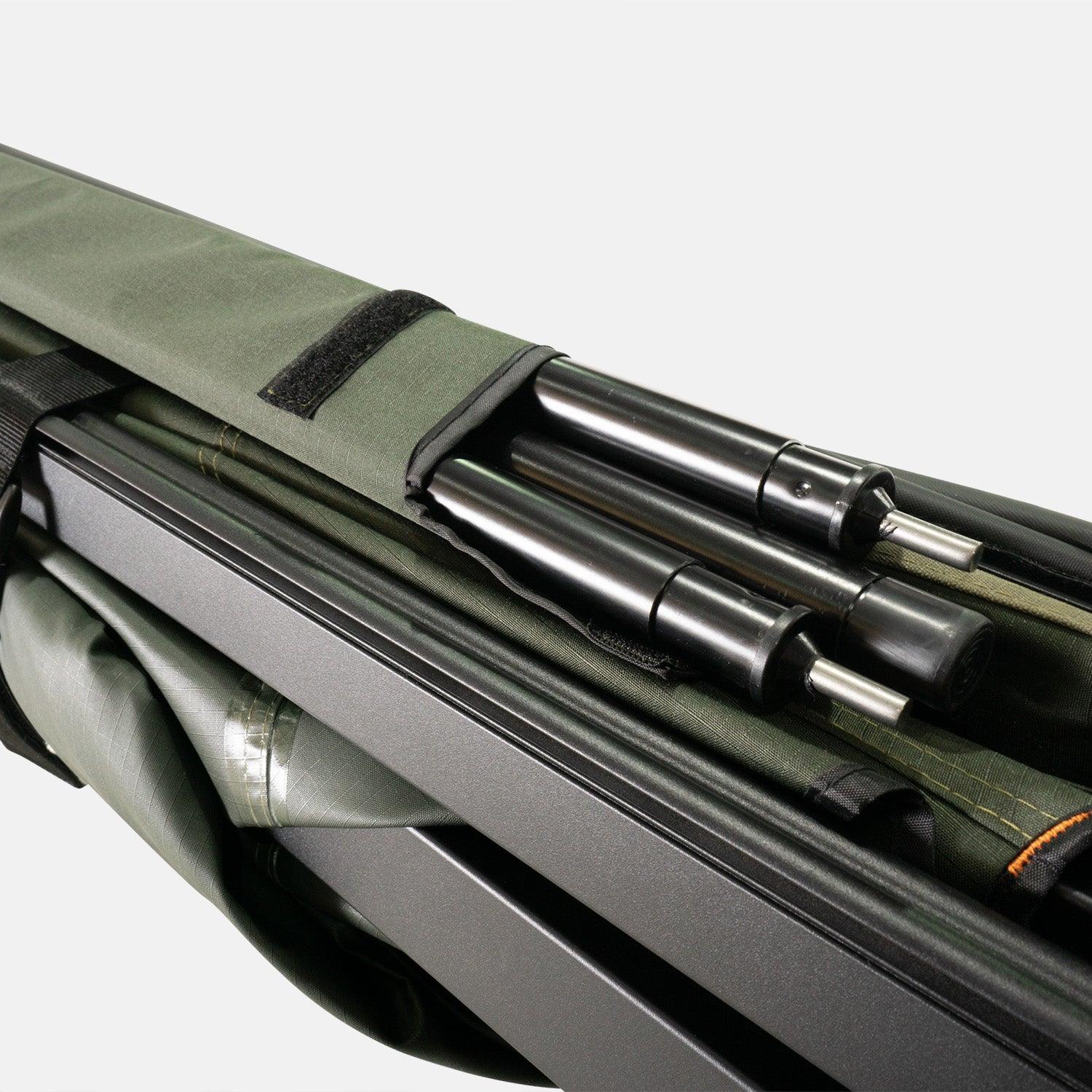

The Eclipse 270° Awning brings next-level shade to your 4WD camping setup. Offering a huge 11.5m² of instant cover, it spans the full length of your vehicle, then wraps around to the rear, giving you greater cover than a straight awning. Designed for an easy one-person set up, the unit is freestanding during set up and pack down. The heavy-duty alloy swivel hinge system holds the entire kit up while you extend and tension the awning arms and release the three pivoting alloy telescopic leg poles stowed along the rafters. Attach the final leg poles and you'll be under cover in a matter of minutes.

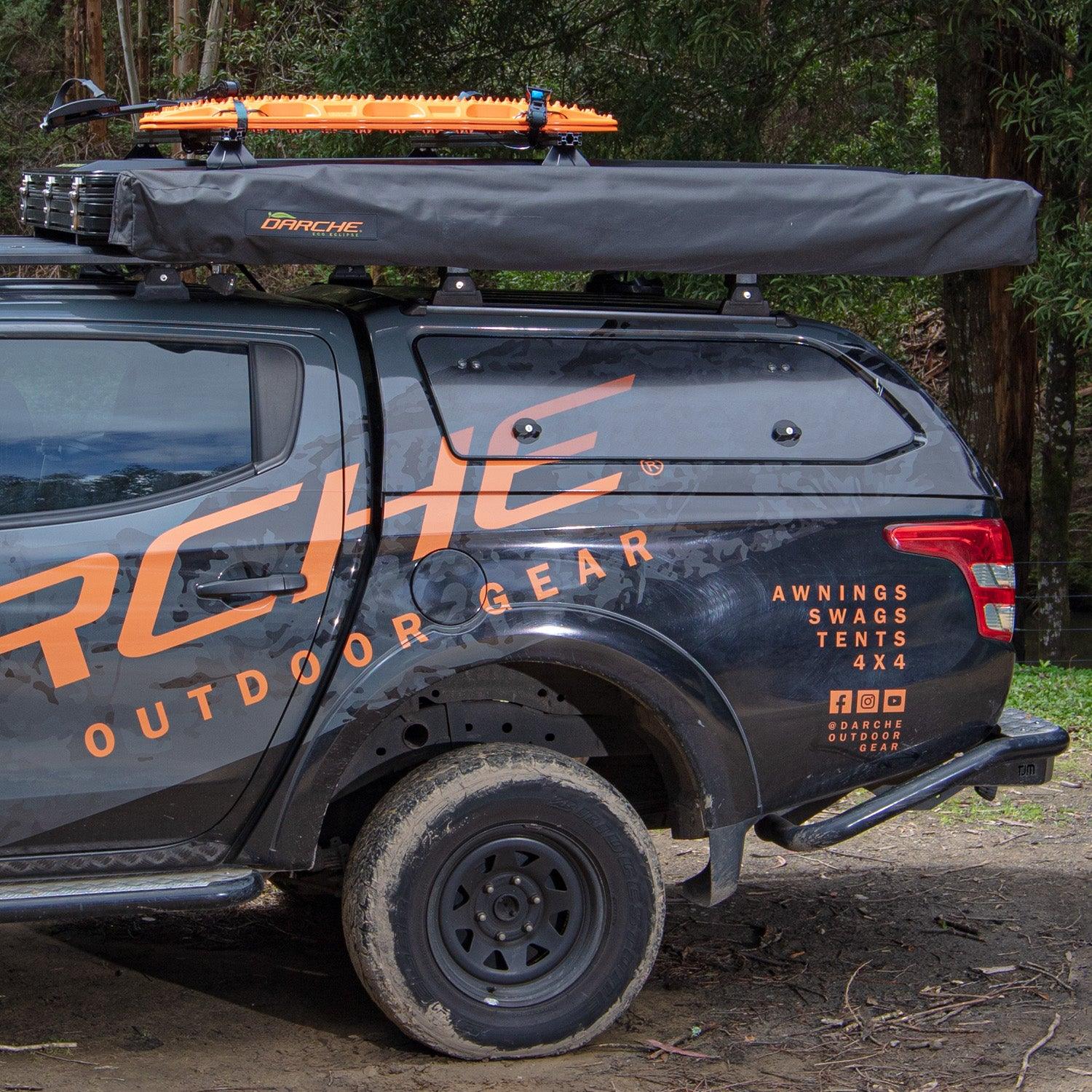

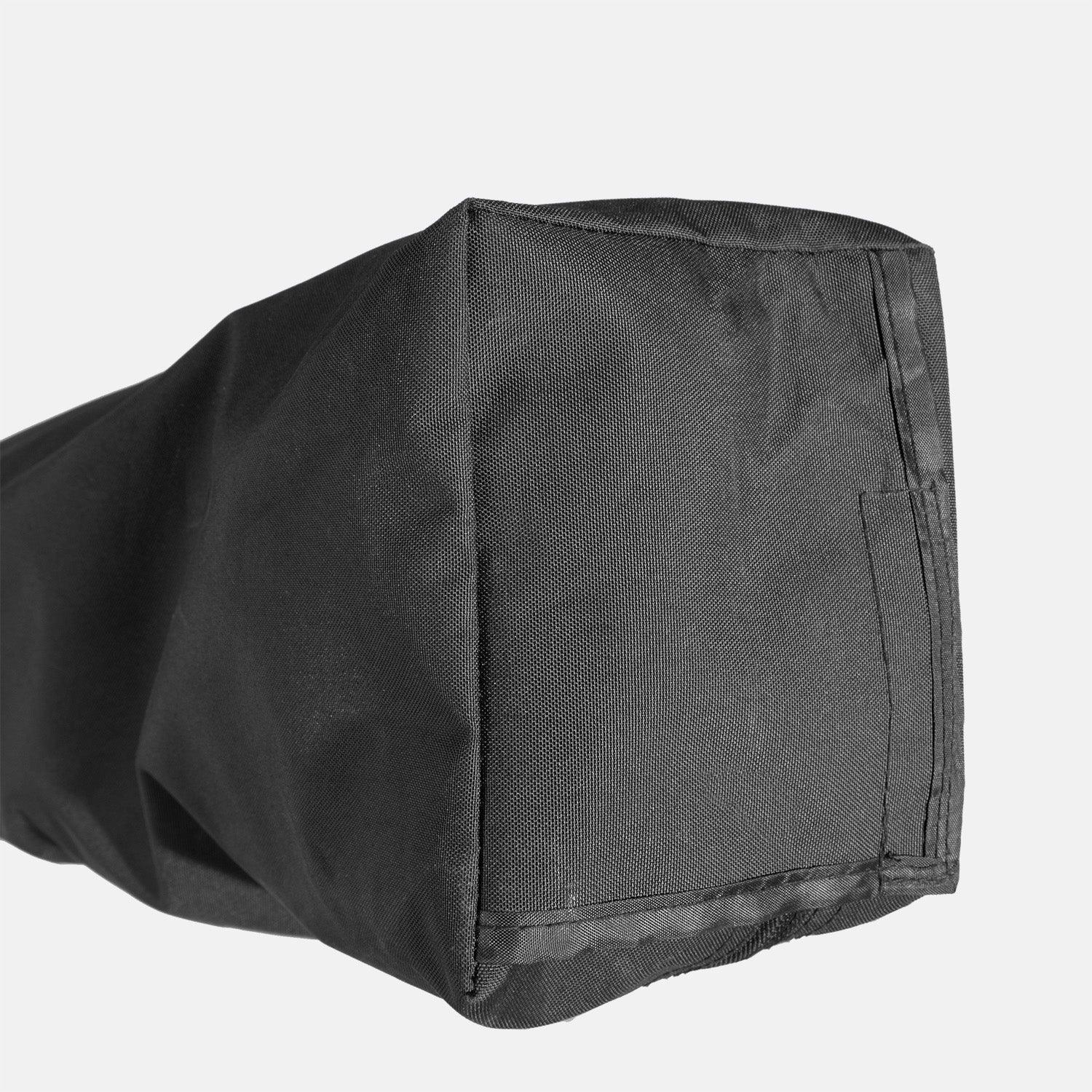

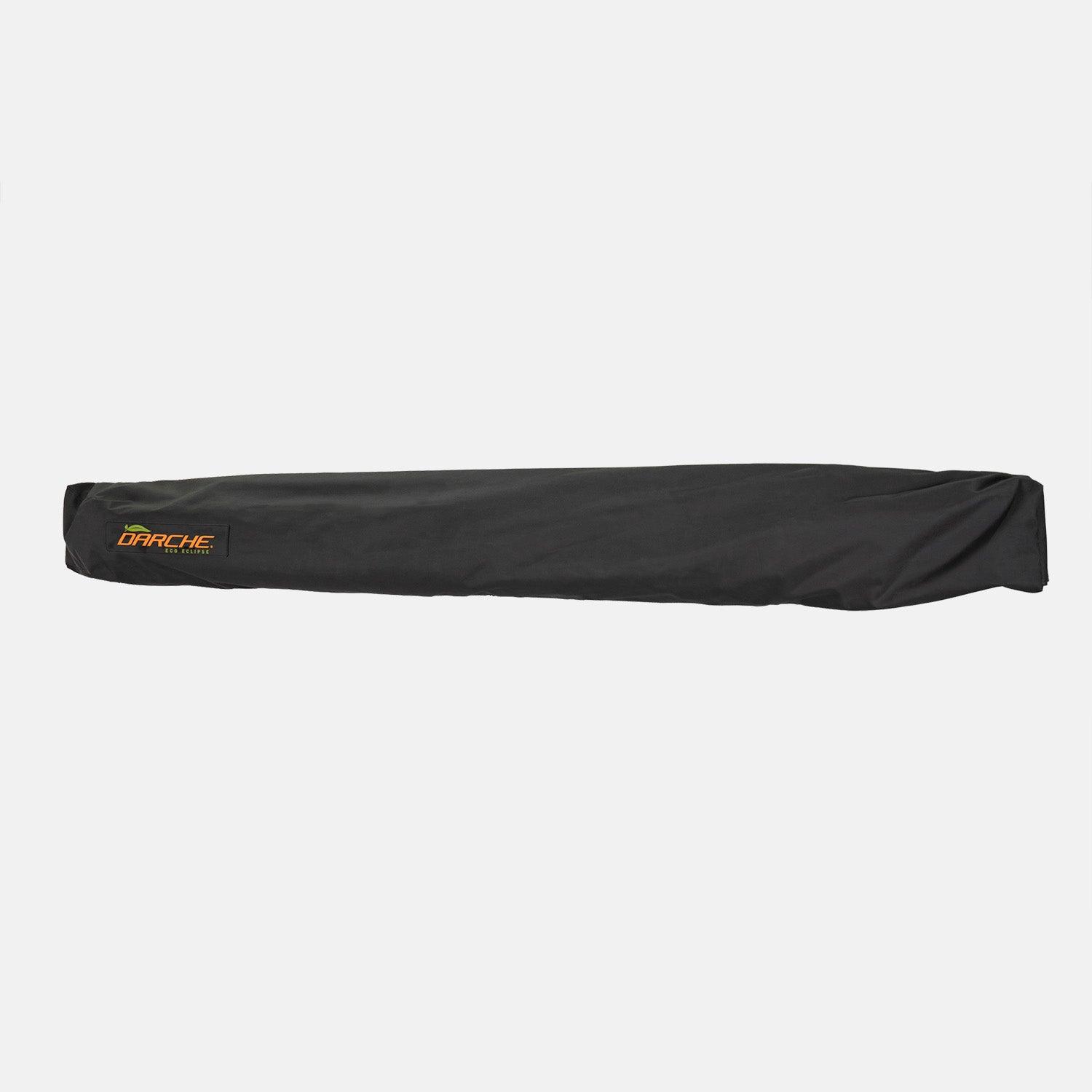

The awning is made from ecoWGAF™ fabric (280gsm polyester oxford ripstop/100% recycled RPET). The kit also includes a removable, heavy-duty 600gsm PVC cover for protection when you’re on the road.

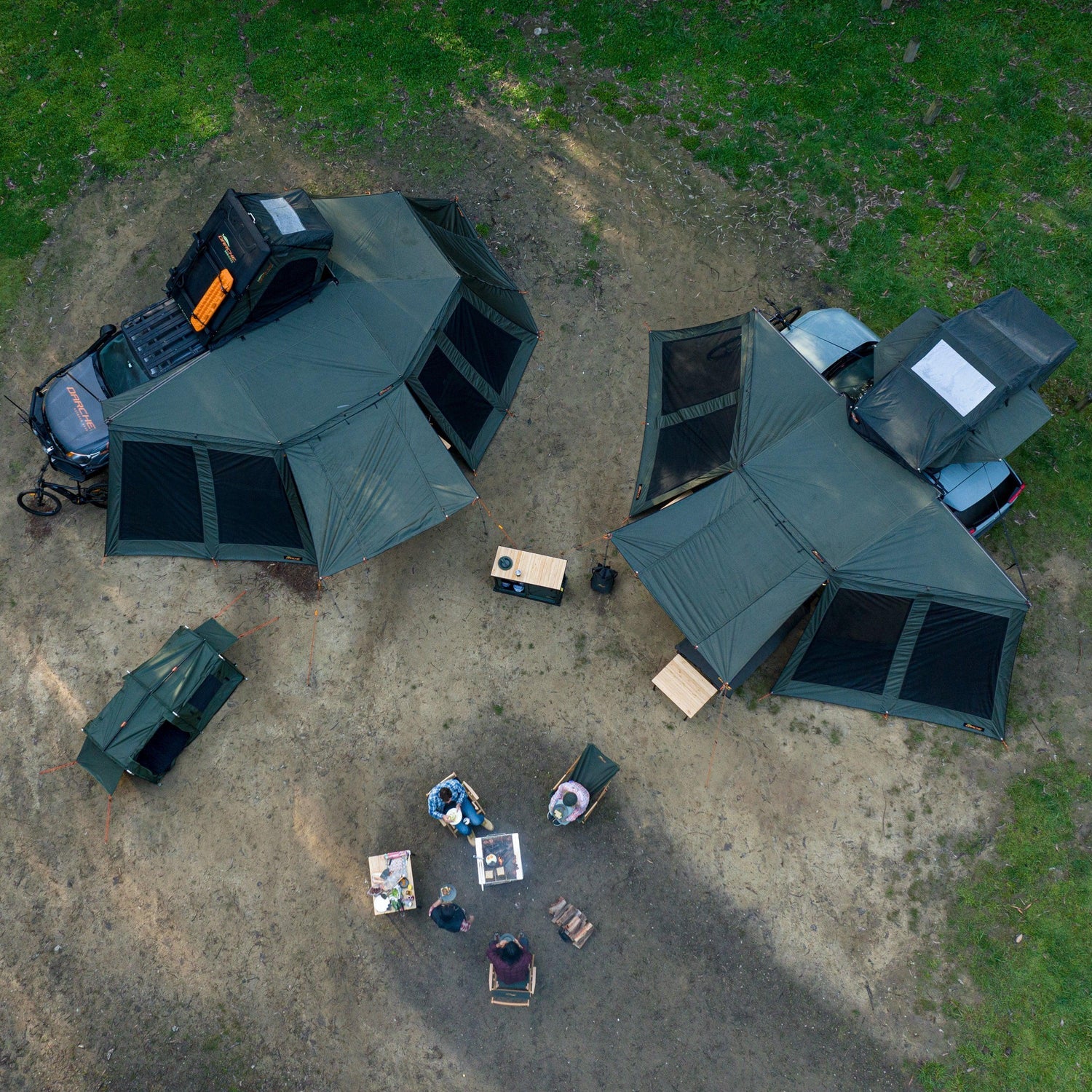

The box-tube alloy arm system is light, strong and built to last. Currently available in left-hand side mount configuration (Australian passenger side), you can put one on the car, on the camp trailer or the shed; your options are endless. With multiple wall panels to choose from (sold separately), you can set up one as a wind and weather break or add them all for a whopping 20.5m² of shelter around your vehicle.

Note: If your awning has a fully-enclosed transit cover that wraps around the backing plate of the awning, please find the installation instruction for that cover under the "Specifications" section below.

Features:

• Provides 11.5m² of cover
• Freestanding set up mode allows for quick and easy one person set up/pack down
• Lightweight and strong box-tube aluminium alloy rafter arms
• Telescopic leg poles to handle uneven terrain
• Black powder coating on backing plate, rafter arms and poles
• Recycled and eco-friendly 900D fabric with extremely high tearing resistance
• Nylon 66 transit cover

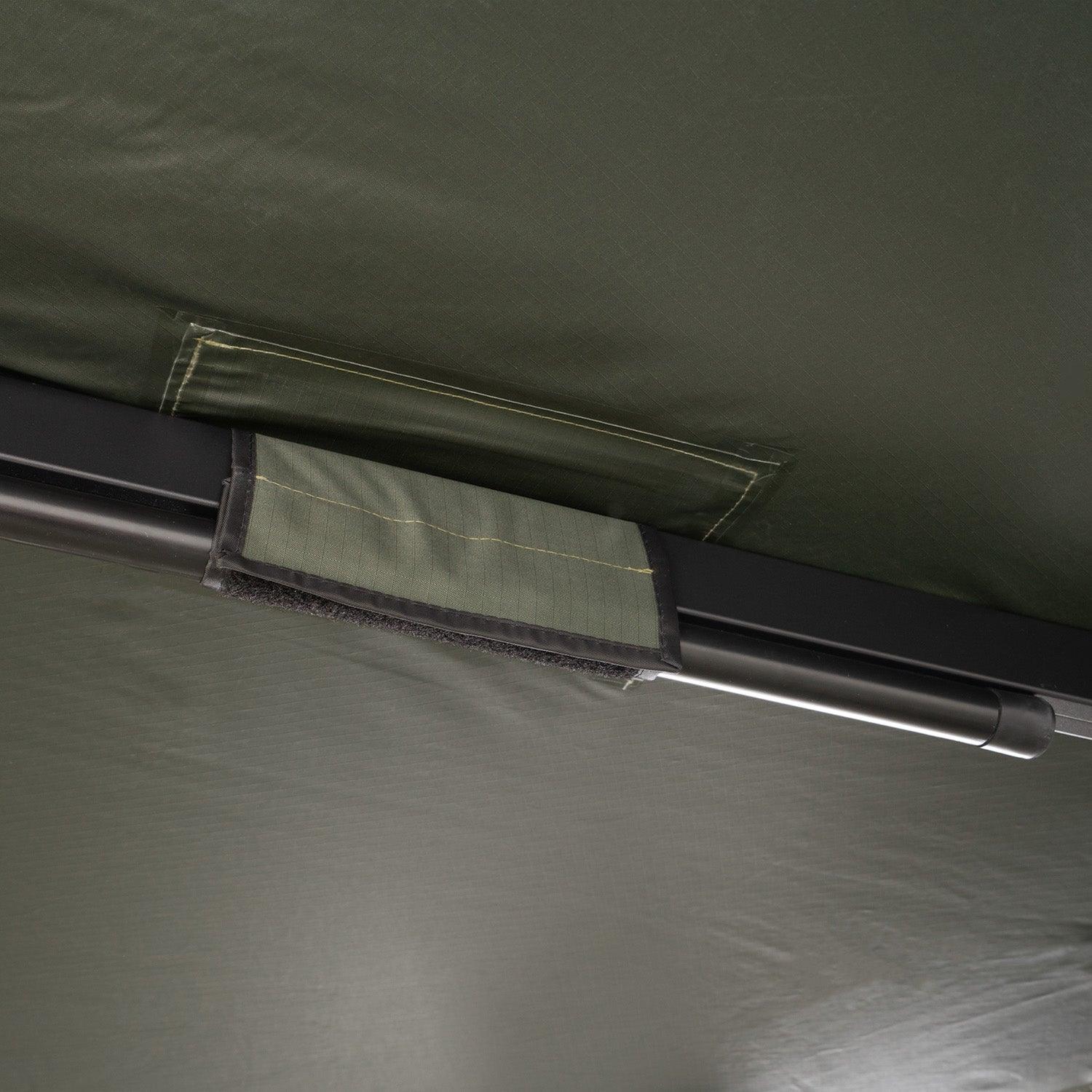

• Includes 3 x pivoting telescopic leg poles stowed on the rafters plus 3 x additional leg poles.
• Includes 3 x mounting brackets, 2 x steel-buckled tension straps, guy ropes and pegs
• Suitable for most commercially available flat roof rack or steel basket set ups.

Specifications:

• Max. Head Height: 2100mm
• Suits Vehicle Height: 1600 to 2100mm
• Mount Type: Side
• Fabric Material: ecoWGAF 280gsm polyester oxford ripstop/100% recycled polyester
• Frame Material: Lightweight Box Tube Alloy Rafters with Heavy-duty Alloy Hinge System

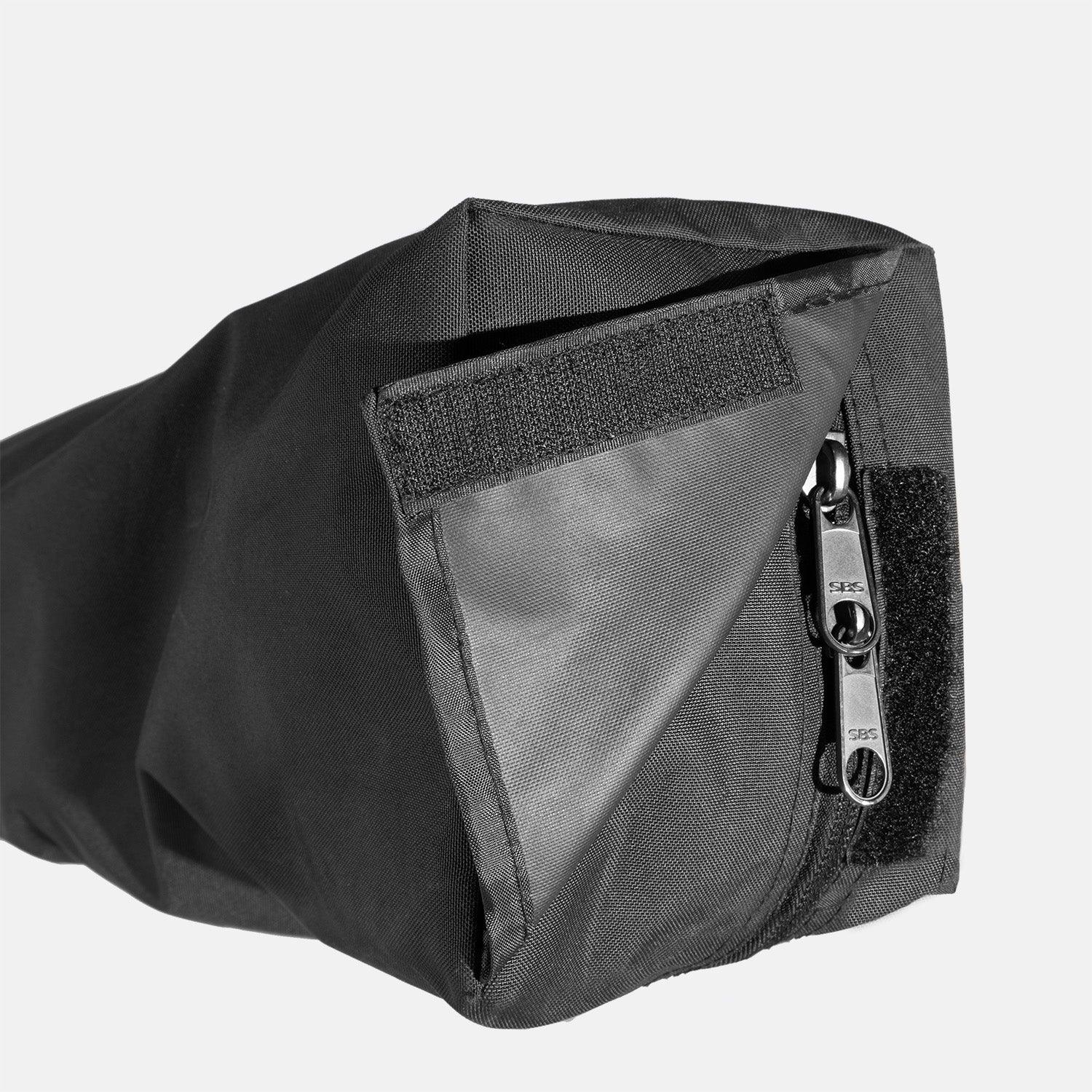

• Transit Cover Material: 820D Nylon 66
• Waterhead Rating: 5000mm
• External Dimensions: 6000L x 4000W x 2300H mm

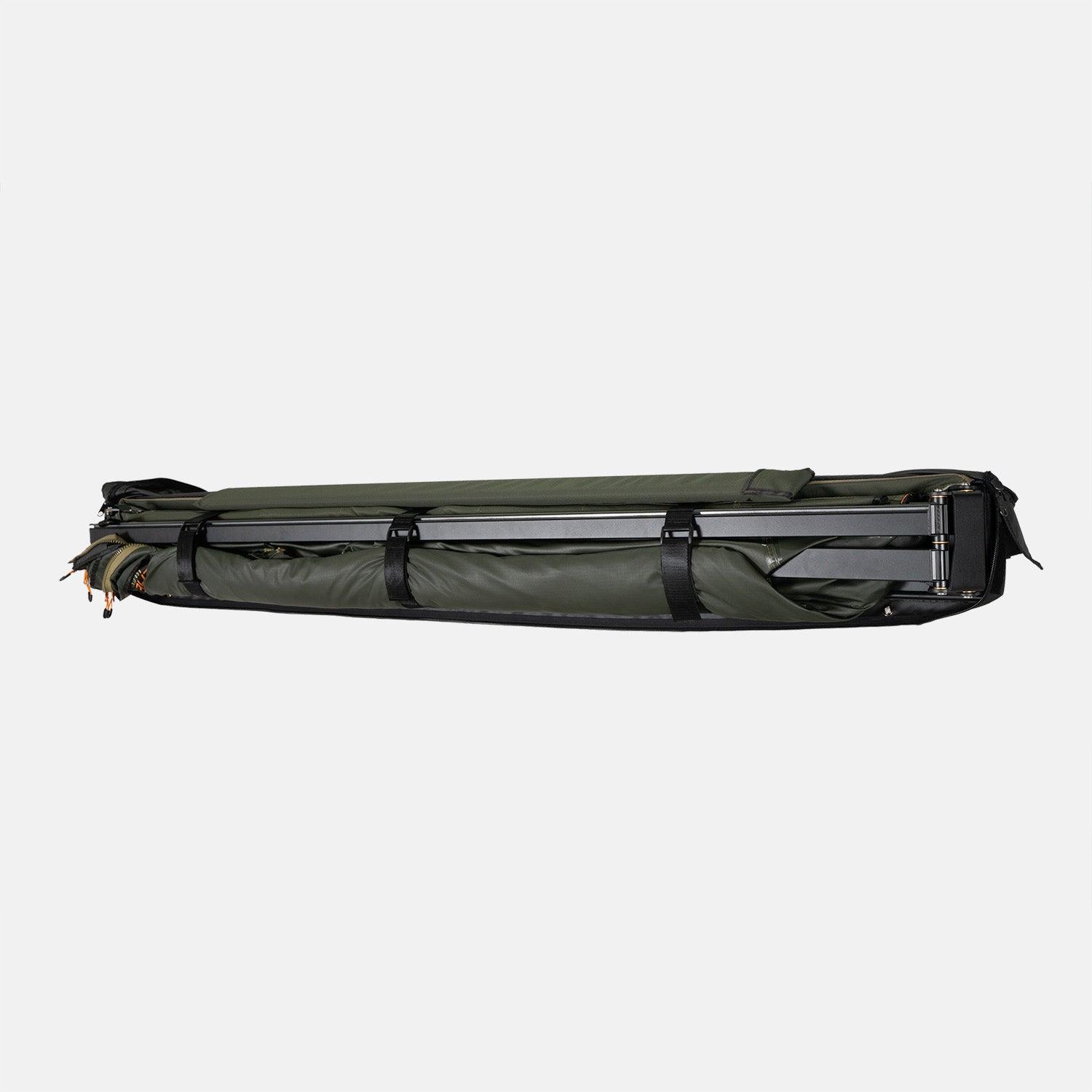

• Packed Dimensions: 2200L x 200W x 200H mm
• Coverage: 11.5 sqm
• Weight: 23.0 kg
• Warranty: 4 Years

INSTRUCTION MANUAL

Fully-Enclosed Transit Cover Installation Instructions

WALL SET

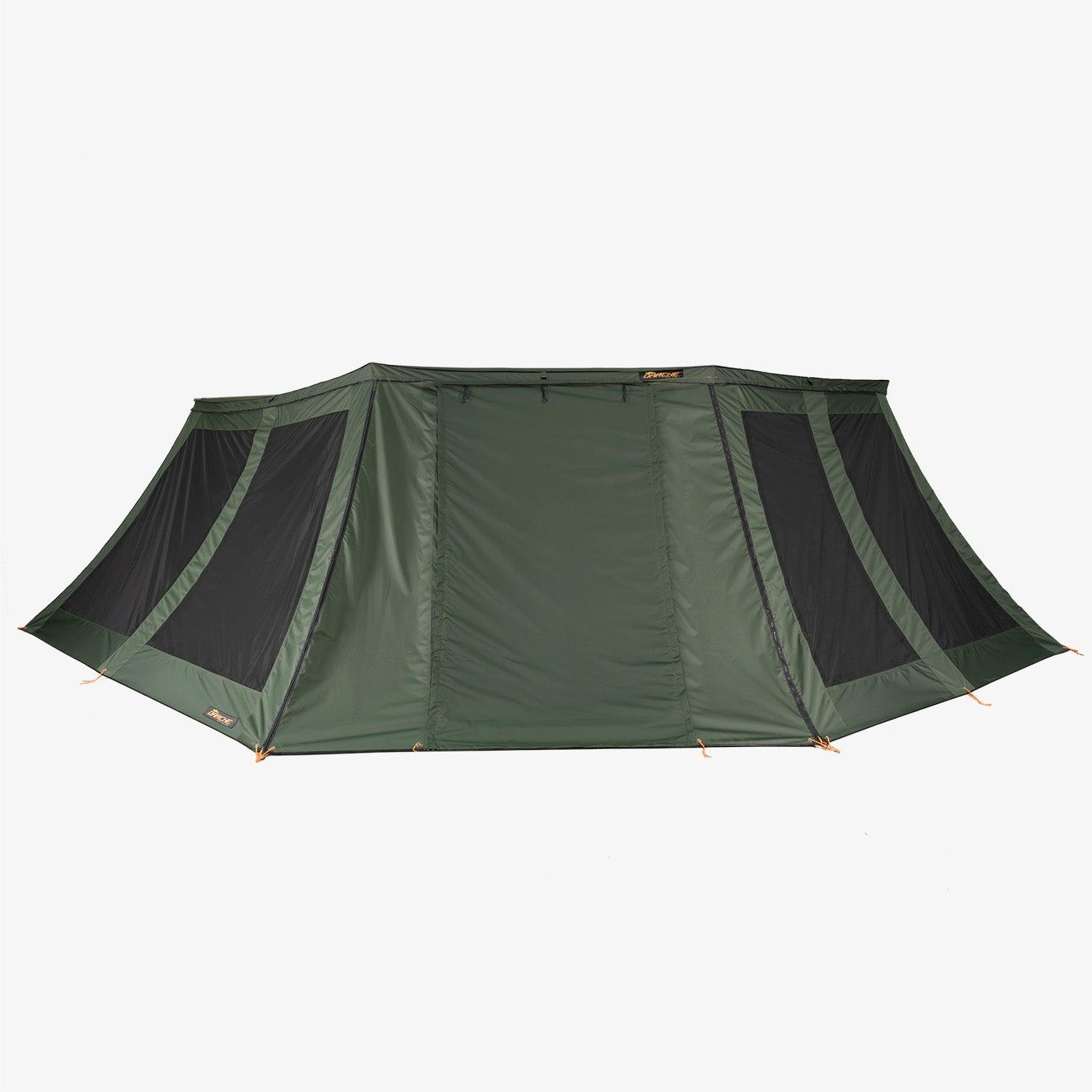

One of your favourite Darche products has become much greener. The Eco 270° Awning Wall Set is made from recycled polyester and includes all 3 walls and with mesh windows. The ecoWGAF™ material cleans up and delivers high performance in tear strength, abrasion resistance, colour fastness and water repellency.

Get even more out of your Eclipse 270° Awning by kitting it out with the Eclipse 270 wall set. The added wall takes your total coverage from 11.2m² to a massive 16.5m², depending on your vehicle's height.

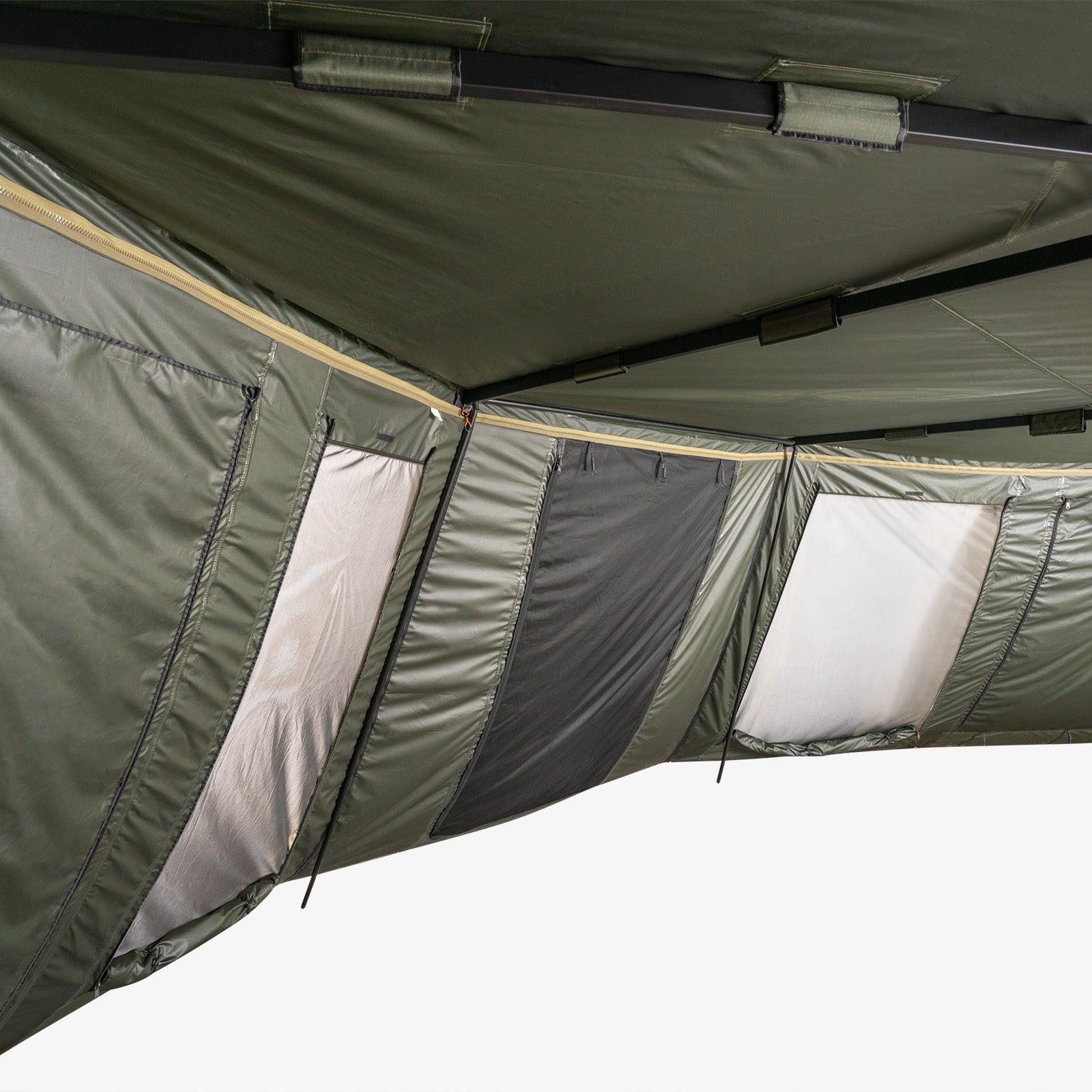

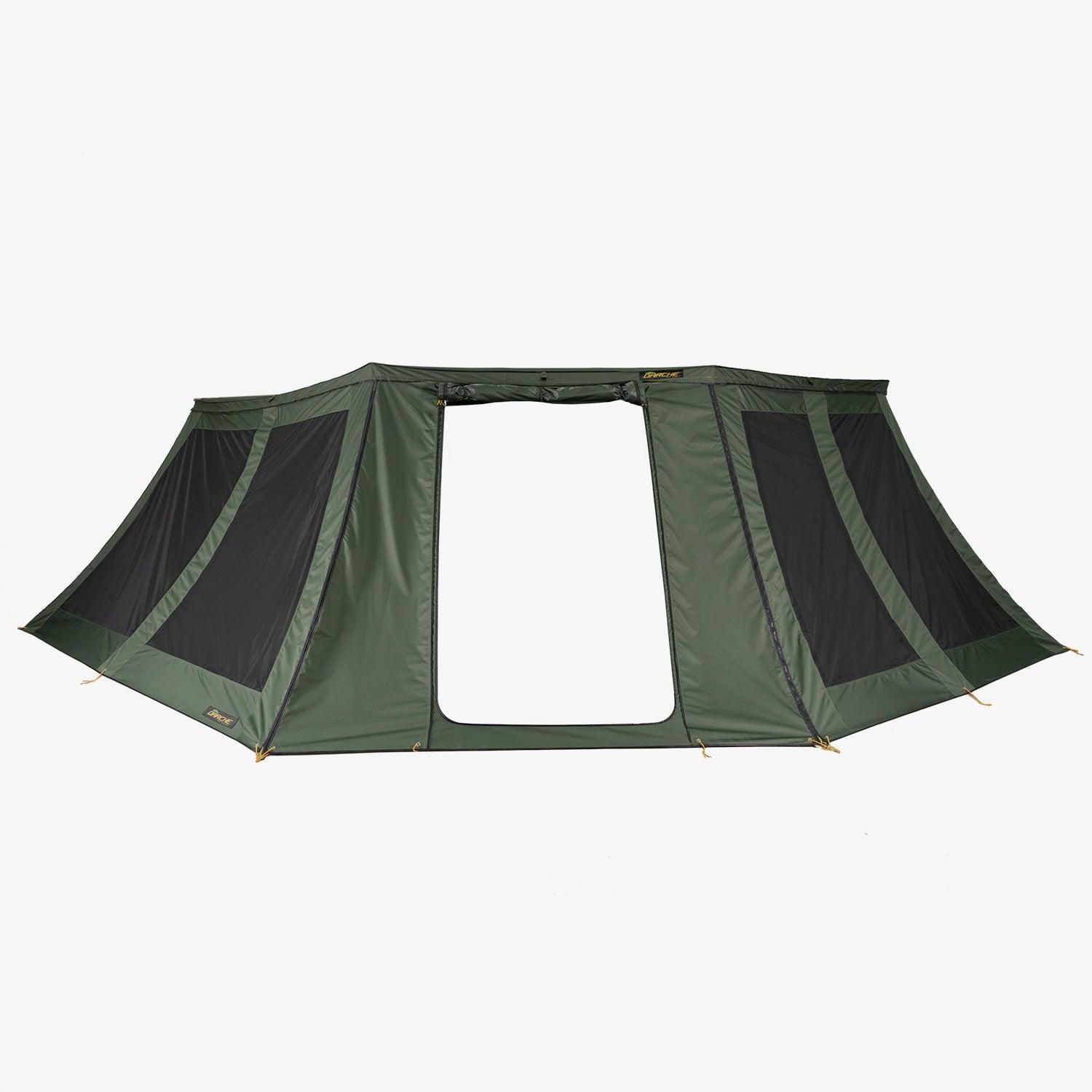

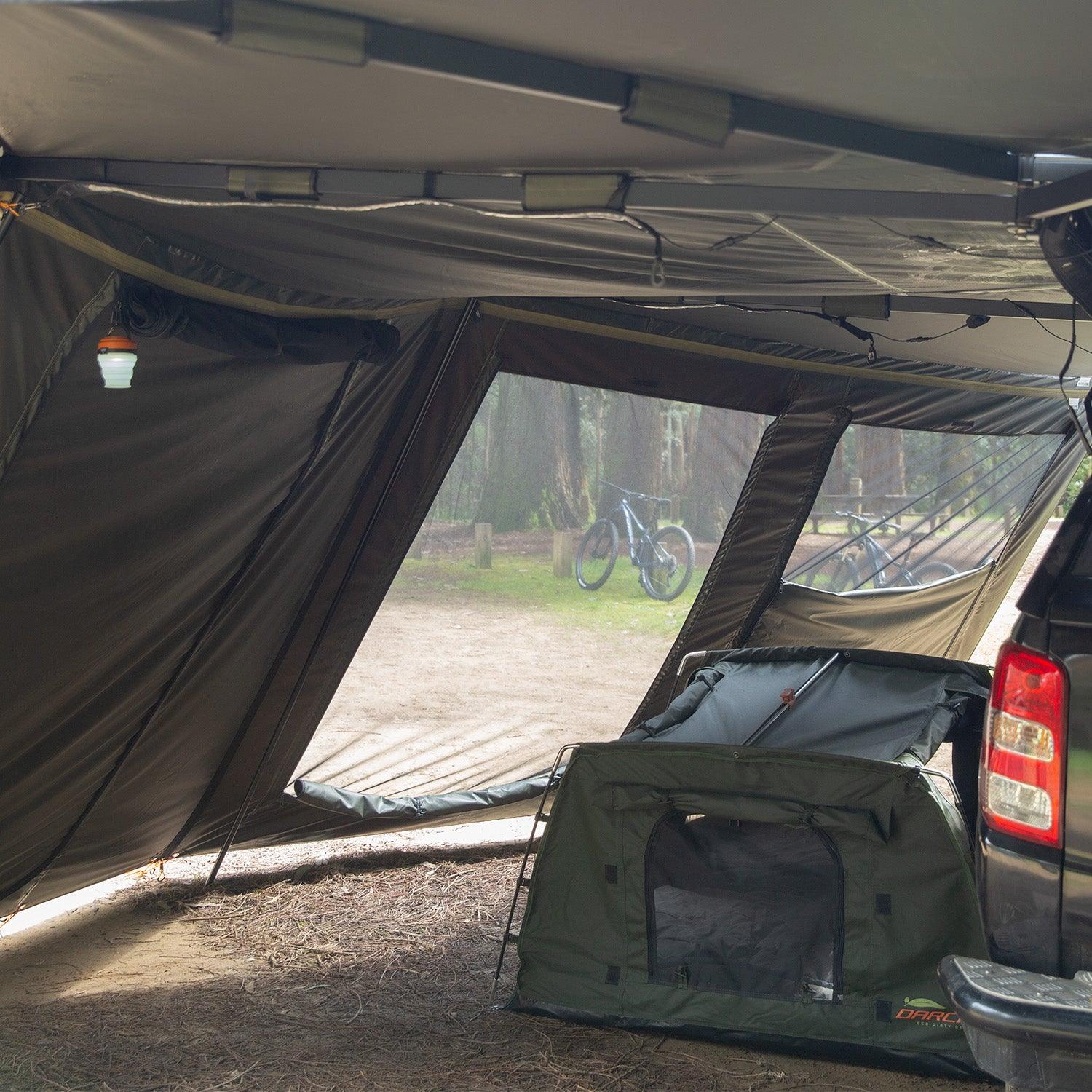

The added wall can be used for protection against the elements or even as an awning extension for extra cover. The zippered walls separate the three panels, giving you plenty of options for your wall set up. Use all three panels as extended awning, peg one panel down to block the wind or peg all the walls down and use the wide zippered door on the centre panel for easy access. The wall is made from ecoWGAF™ TM fabric (180gsm polyester oxford ripstop/100% recycled polyester.

Ensure awning is anchored with supplied guy ropes and pegs at all times when in use.

Features:

• Provides up to 20.5 m² with all walls anchored
• Acts as a wind/weather break or as an awning extension (poles sold separately)

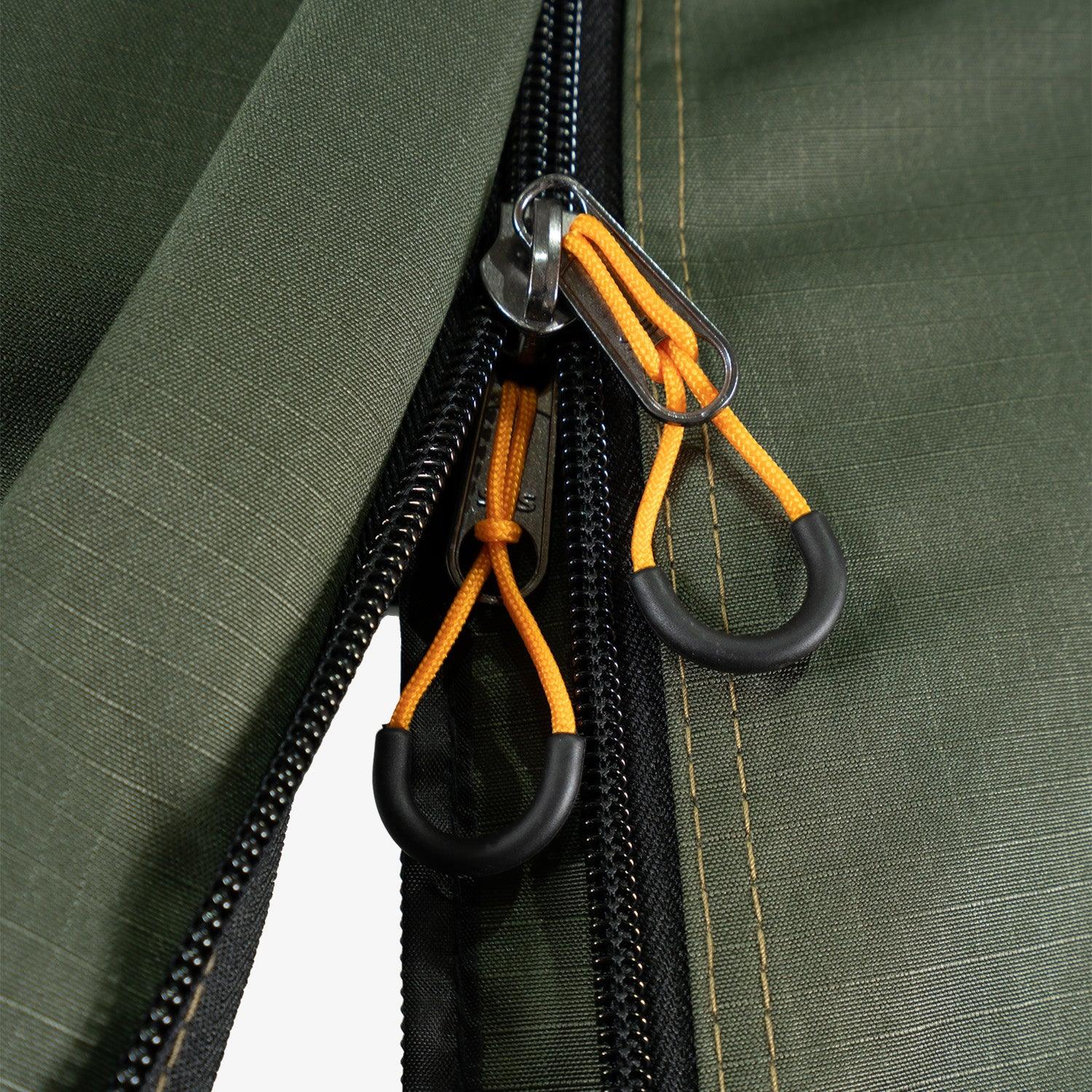

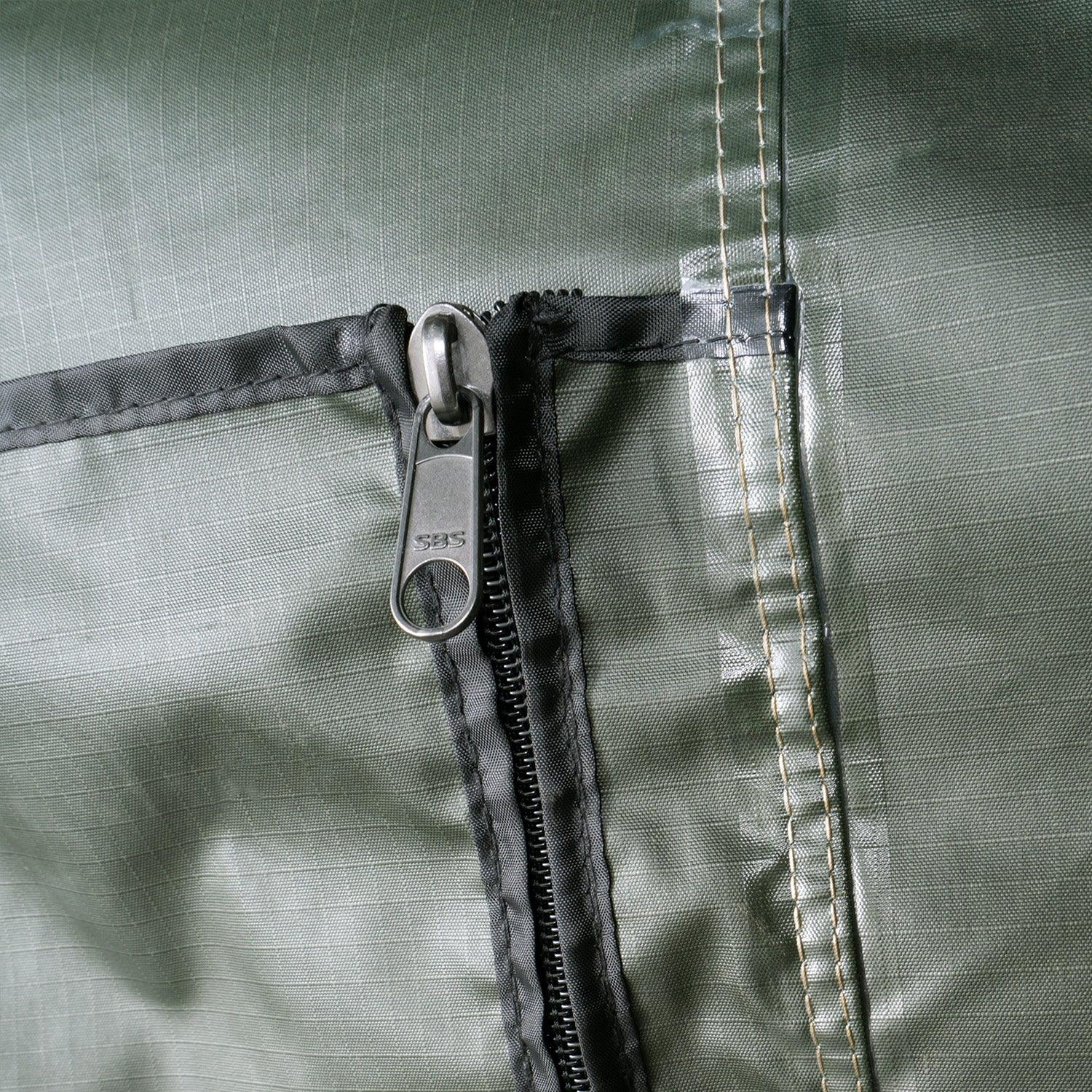

• Zippered wall panels allows for versatile configurations
• Zippered door with mesh backing
• Mesh windows
• Includes pegs and guy ropes

Specifications:

• Fabric Material: ecoWGAF 180gsm polyester oxford ripstop/100% recycled polyester with mesh inserts
• Waterhead Rating: 5000mm

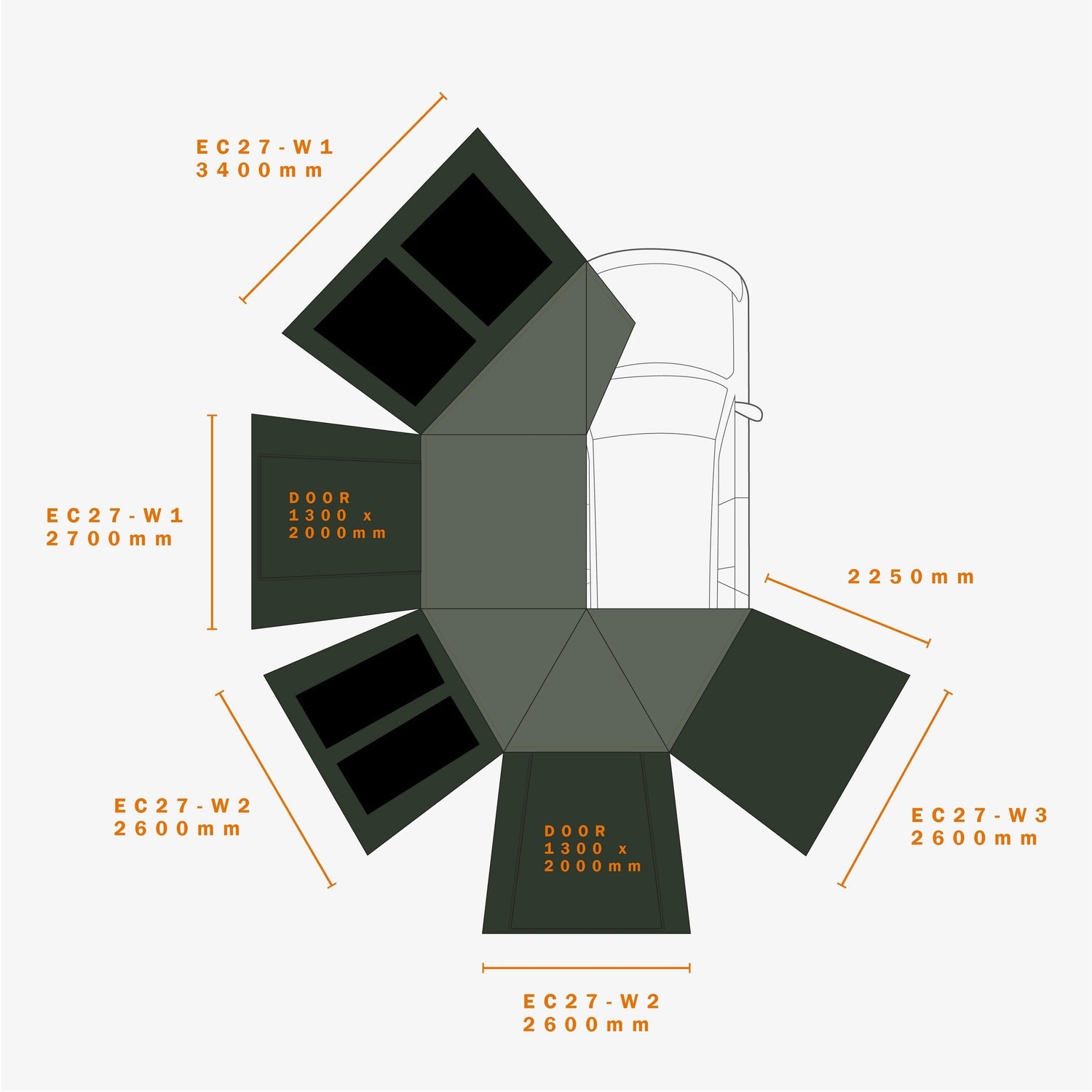

• External Dimensions: Wall 1 6420x2330mm | Wall 2 5960x2330mm | Wall 3 3050x2330mm mm
• Packed Dimensions: 500L x 360W x 170H mm
• Coverage: 20.5 sqm (inc. awning)
• Weight: 14.0 kg
• Warranty: 4 Years
