BATTERY INFORMATION AND WATER TANK LEVELS ON ONE SCREEN
The RV battery monitor Trek3 is a smart battery monitor able to learn the actual battery capacity with time and provide more accurate feedback to the user. It combines comprehensive battery data together with water tank level measurement on one screen in a sleek design.
The Trek3 is designed to work with the BatteryPlus35-II Power Management System. Connected to the BatteryPlus35-II via CAN bus, it continuously monitors information providing vital data at a glance.

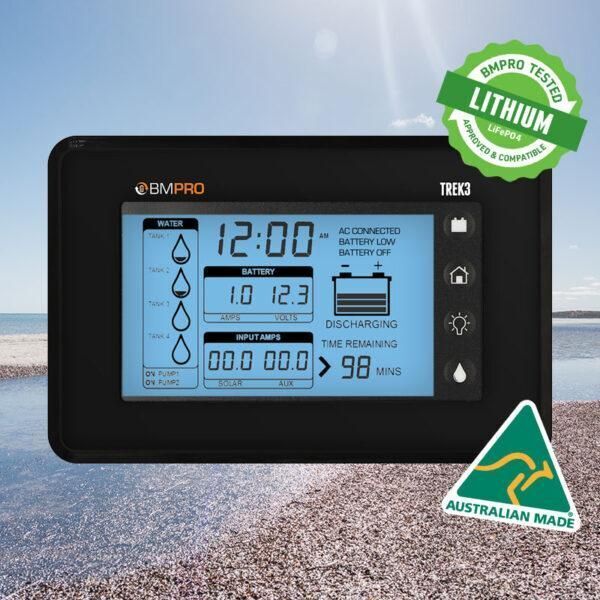

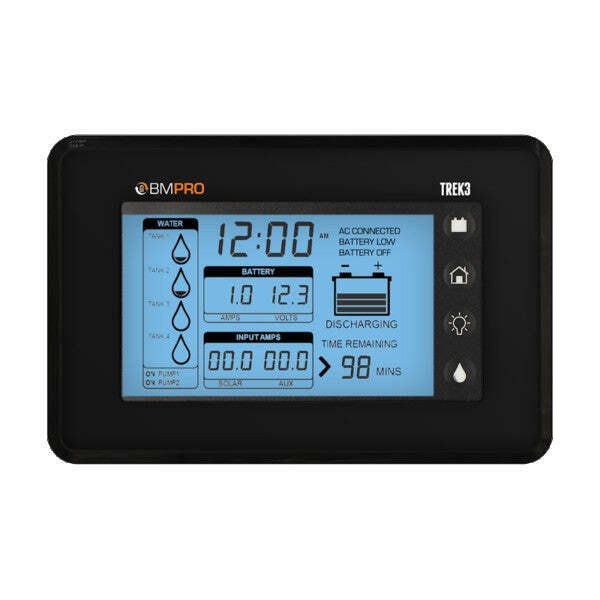

The Trek3 monitors and displays vital battery information such as volts and amps, charge and discharge status, auxiliary and solar currents, as well as remaining battery capacity. It displays information on water tank levels and controls two water pumps with an on/off switch. The user can also quickly and easily isolate the battery from loads with the battery isolate button. The backlit LCD display of the RV battery monitor looks stylish and is easy to read. One can also use the backlight as a night light.
The Trek3 can be connected to the OdysseyLink103 (included in the retail package) to become a part of the Odyssey system. The OdysseyLink103 enables SmartConnect Bluetooth sensors and the use of a free Odyssey App to remotely monitor the battery and control caravan’s water pumps from the mobile phone.
The Trek3 has two mounting options (flush / half recessed). We offer caravan manufacturers multiple front fascia colour options to suit the design of your van.
Features:
- Battery voltage & charge status
- Battery charging & discharging currents
- Auxiliary & solar charging currents
- Time remaining to discharge
- Level indication of up to 4 water tanks
- Water pump status
- The battery on/off status
- Backlight can be set as a night light
- Control two water pumps through the BatteryPlus35-II
- Function to disconnect the battery from the load
- Includes OdysseyLink103 to enable SmartConnect and Odyssey app
SPECIFICATIONS:
-
Input Voltage Range: 8V - 15V
-
Battery Drain: <21mA with backlight off
-
Ambient Temperature: 0-50°C
-
Dimensions: 164mm x 108mm x 22mm
