Intelligent DC-DC chargers

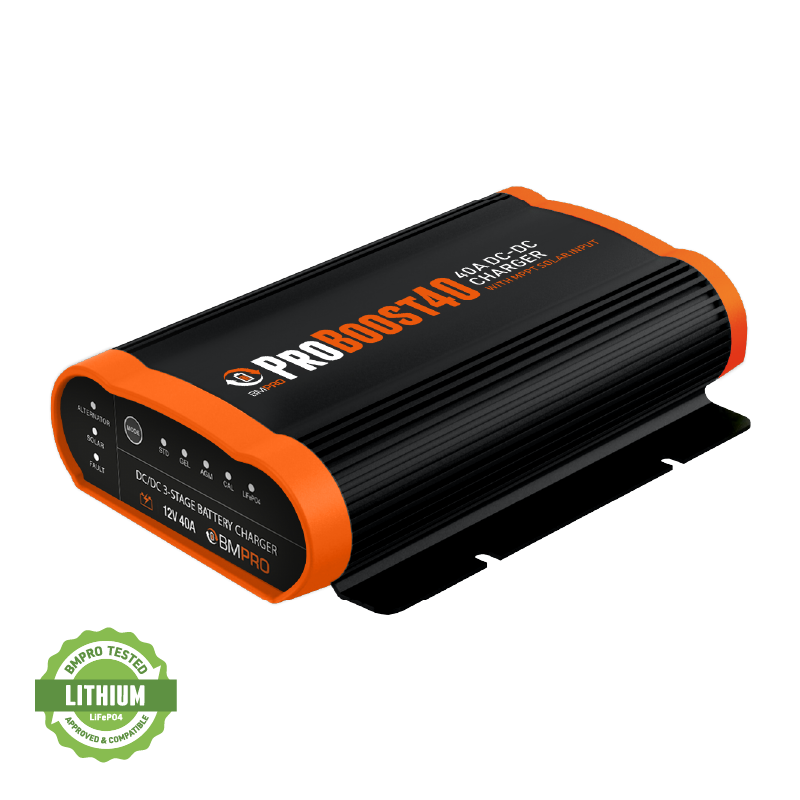

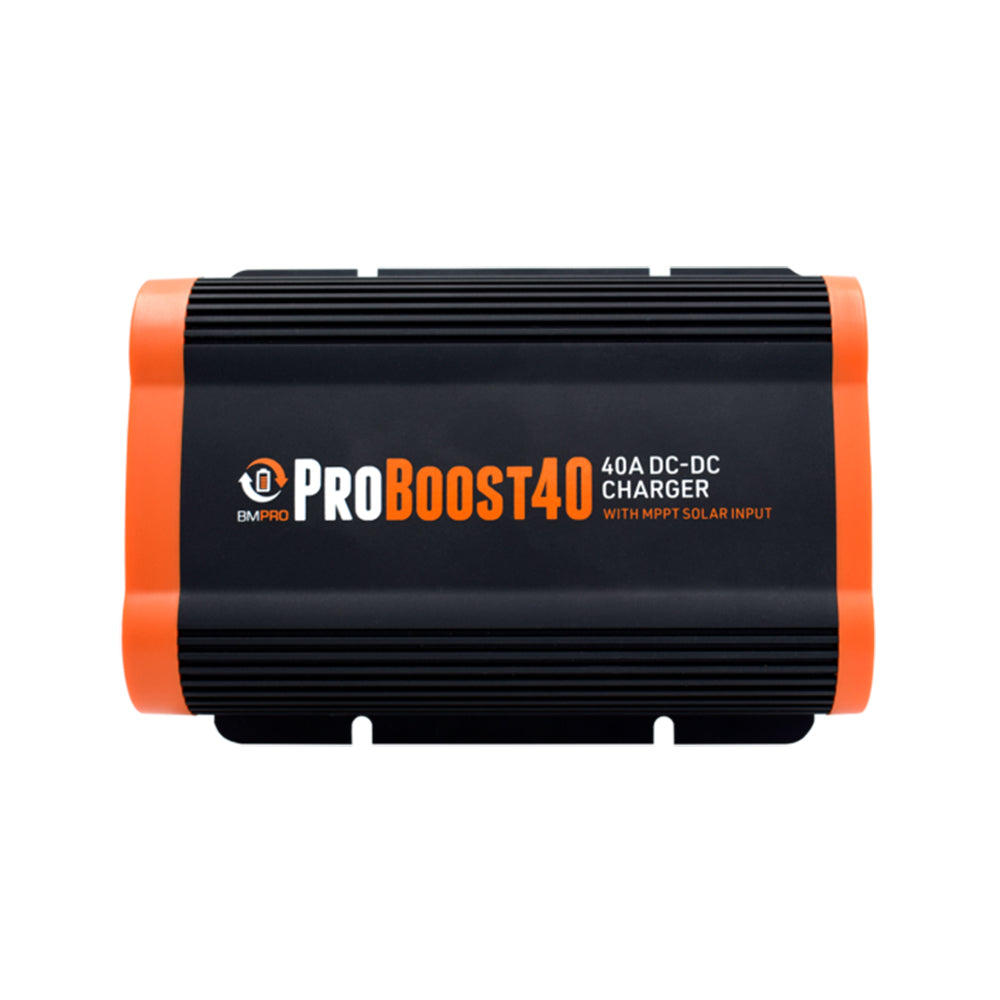

BMPRO’s ProBoost40 is a DC-DC battery charger that allows you to charge a secondary battery using solar panels and/or a towing vehicle’s 12V electrical system.
The ProBoost40 utilises solar and auxiliary inputs to produce a maximum of 40A which ensures there is a consistent charge to your battery.
Compatible with both lead-acid and lithium LiFePO4 batteries, the high power density design of the ProBoost40 provides efficiency of up to 95%.
The ProBoost40 has an ultra-thin design, making it suitable for installation in small spaces, and is resilient to shaking, as well as wet, dusty or muddy environments.
A range of protective features built into the ProBoost40, such as overtemperature, overvoltage and undervoltage protection, will guard your charging capacity.
Features
- Dual input MPPT solar/aux (alternator)
- Multi-battery chemistry selector
- IP56 rating – resistant to dust, water & shock damage
- Maintains a 100% state of charge of auxiliary batteries
- Suitable for under-bonnet installation
*The ProBoost DC-DC Charger is designed to work as a standalone product.
To use this with a BMPRO Power Management System, such as the BatteryPlus35-II or the J35, you will need to connect it through a BC300 External Shunt.
Specifications
- Input Voltage: 9 - 18V
- Solar Input Voltage: 10 - 25V
- Maximum Input Current: 47A
- Input Fuse Rating: 60A
- Solar Input Watts: 800W
- Maximum Output Current: 40A
- Output Fuse Rating: 60A
- Minimum Start Voltage (Lead-Acid): 4V
- Minimum Start Voltage (LiFePO4): 0V
- Standby Current: <10mA
- Battery Type: STD, Gel, AGM, Calcium, LiFePO4
- Operating Temperature: -20°C to 80°C
- IP Rating: IP56
- Dimensions|: 183mm x 130mm x 43mm
- Charge Type: 3-Stage
- Maximum Voltage (STD): 14.4V
- Maximum Voltage (Gel): 14.1V
- Maximum Voltage (AGM): 14.7V
- Maximum Voltage (Calcium): 15.3V
- Maximum Voltage (LiFePO4): 14.5V
- Float Voltage (STD): 13.4V
- Float Voltage (Gel): 13.5V
- Float Voltage (AGM): 13.4V
- Float Voltage (Calcium): 13.6V
- Float Voltage (LiFePO4): 13.6V
- Turn On Input (Standard Alternator): >13.1V
- Turn On Input (Smart Alternator): >12.0V
- Turn Off Input (Standard Alternator): <12.8V
- Turn Off Input (Smart Alternator): <11.8V
SEE PRODUCT MANUAL HERE
